Light and powerful 5" race quad only 180 gr!

10-06-2018

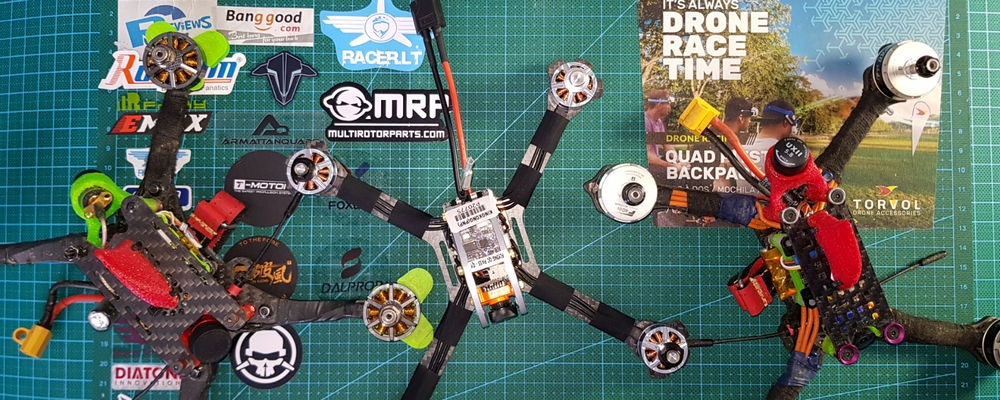

The LDARC 200GT frame and whole quad is really impressed me, not only it weight significantly less than other quads but it can really fly great it also has aluminium body what will protect well all gear inside, including camera and esc/vtx/fc/rx.

You can make big camera angle, but for convenience there is degree markers, witch is max marked 45° (remove stopper to go more).

Change VTX to TBS nano, and you are race ready (you need to reconfigure uarts to be able to use SA).

Available here: https://api.racer.lt/6ya2

Spare frame with led's motor protectors and props 5x4x3: https://api.racer.lt/6zb0
Motors: XT1806: https://api.racer.lt/6zb1
ESC 20A + F4 FC: https://api.racer.lt/6zba
Spare box: https://api.racer.lt/6zb2
Other cameras what will fit great:
Foxeer Predator: V1: https://api.racer.lt/6yb5 V2: https://api.racer.lt/6zb3 Monster: https://api.racer.lt/6zb6 Arrow: https://api.racer.lt/6zb7
RunCam: Sparrow v2: https://api.racer.lt/6zb4 Swift v2: https://api.racer.lt/6zb8
Caddx: https://api.racer.lt/6zb5

Great RTF race quad ready for races: https://api.racer.lt/6yj1 wonderful big durable wing: https://api.racer.lt/6yj5

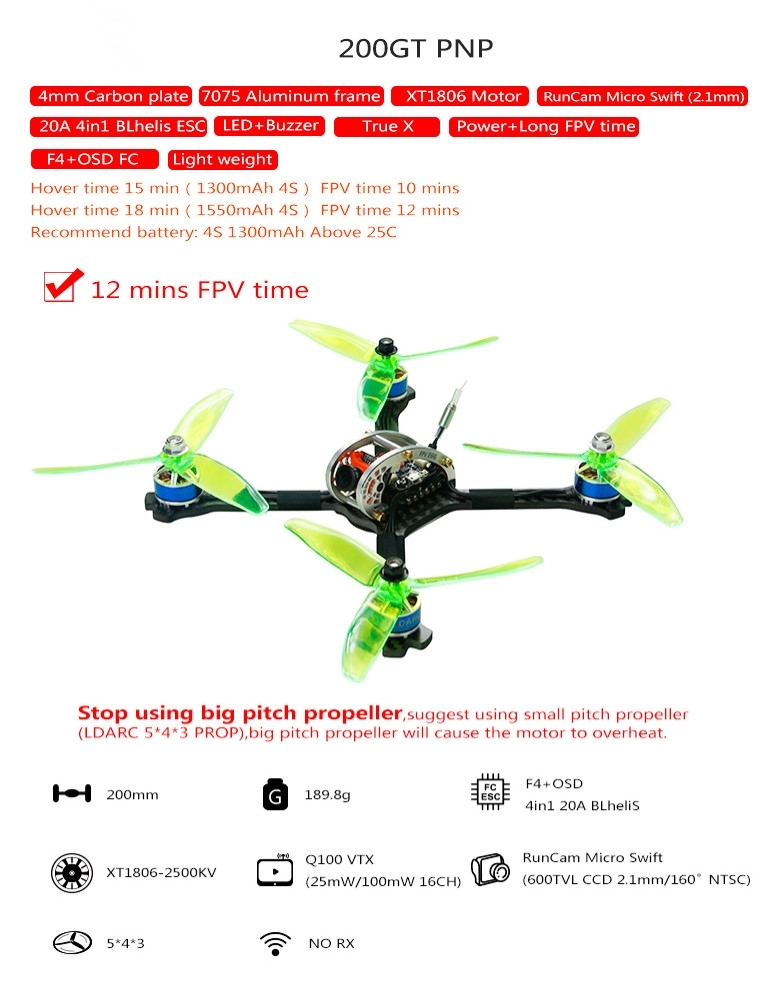

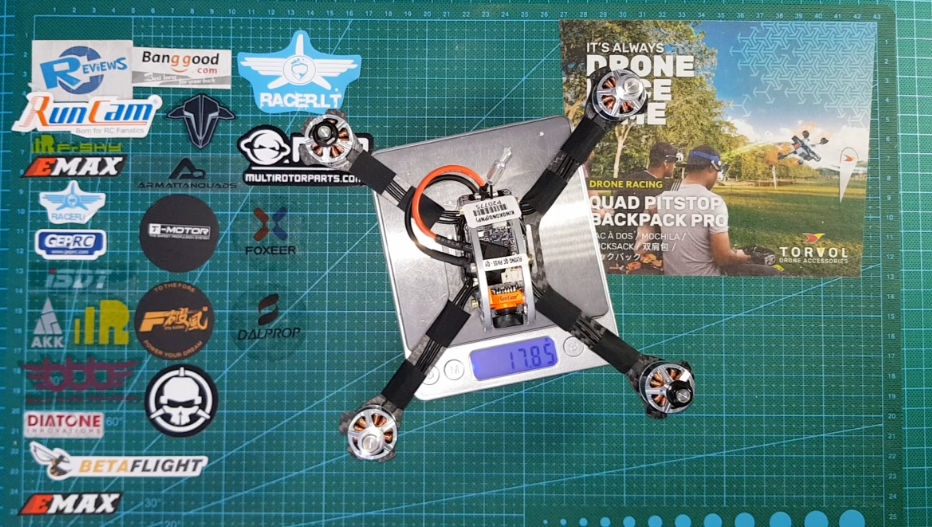

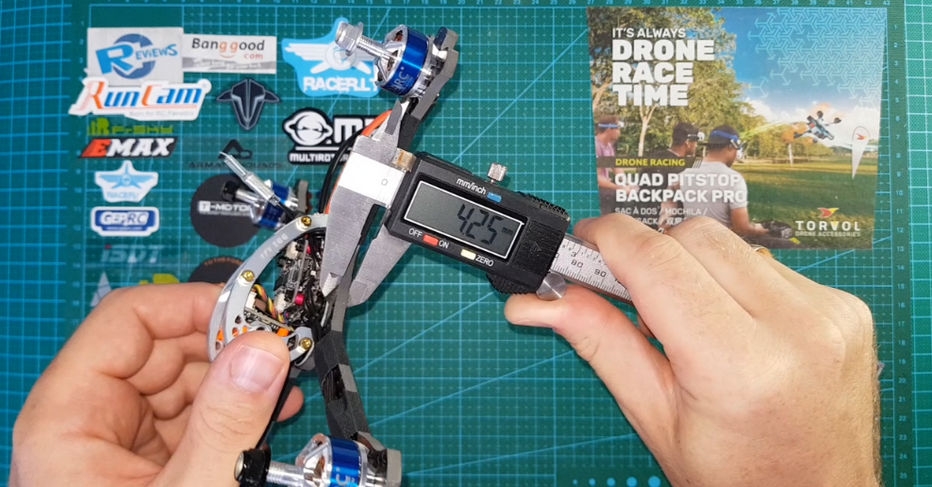

Lightest 5" PNP/BNF quad ever. Only 175 grams on 4.2 mm frame, with aluminium shell and powerful motors.

Comes with XT1806 - 2500kv motors, max peatch for them at 5" is 5040x3 if you use bigger pitch motor will overheat.

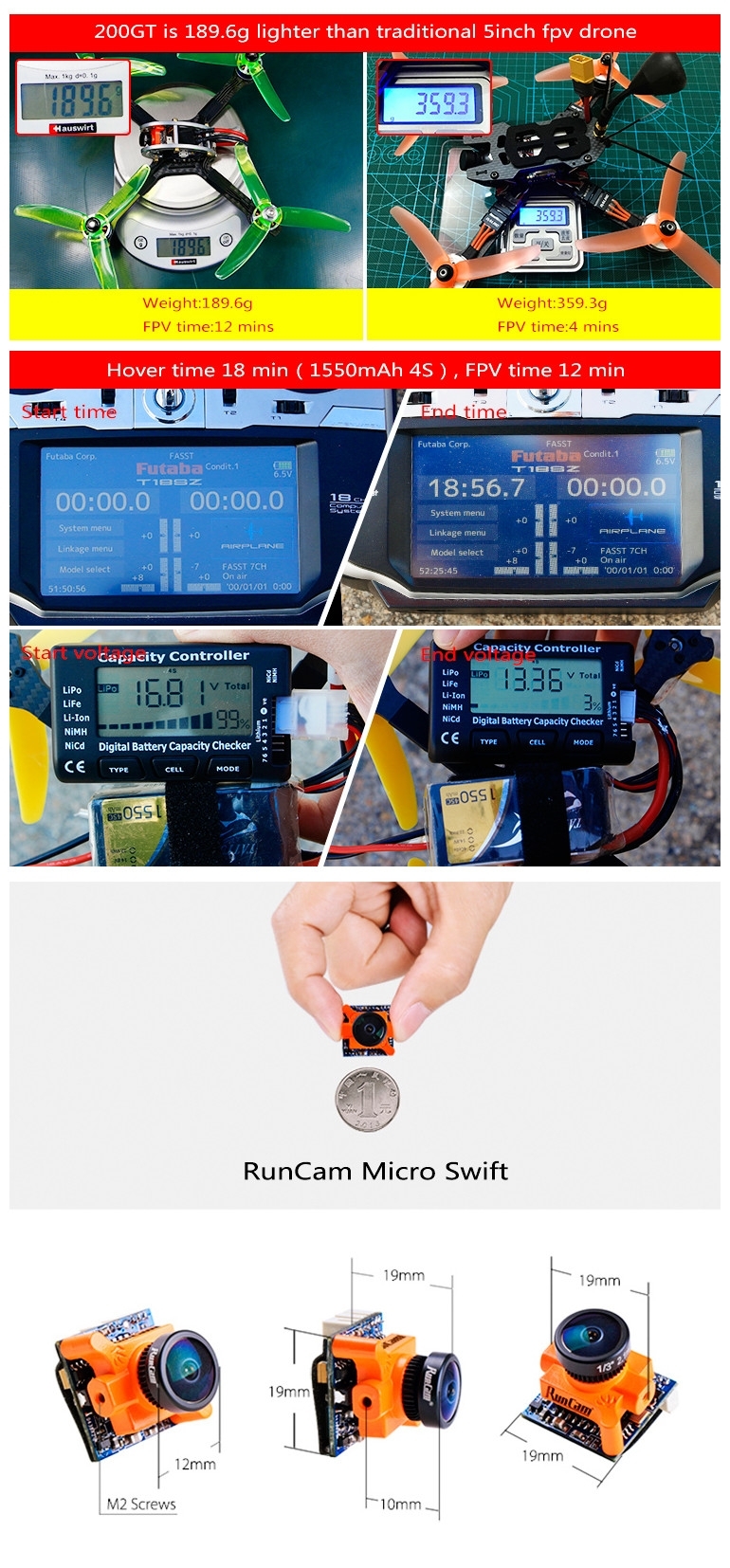

Includes real runcam Micro Swift v1, F4 + OSD and 4in1 20A BlHeliS ESC 2-4s!

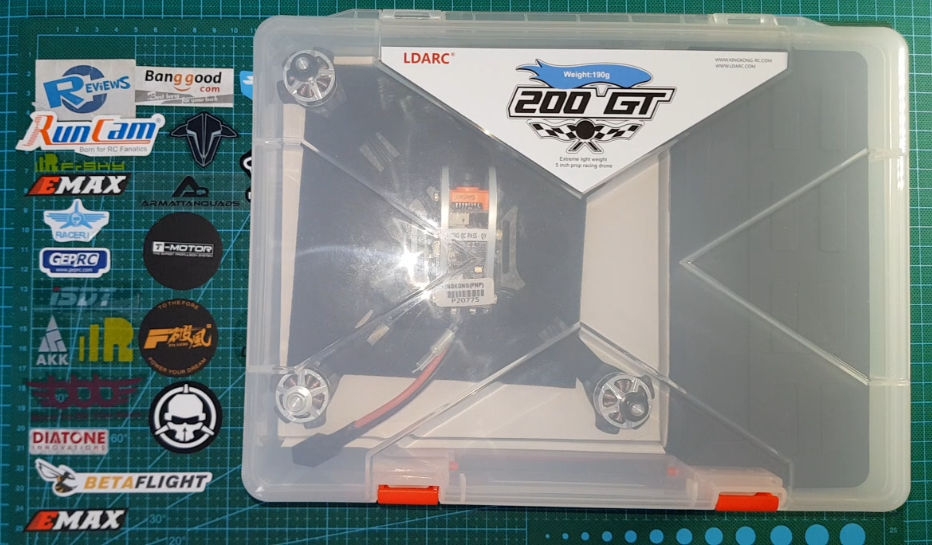

Nice carrying box for easy travel!

Get your's here: https://api.racer.lt/6ya2

LDARC/Kingkong 200GT 200mm F4 OSD FPV Racing Drone BLheli_S 5.8G 16CH 25mW 100mW VTX 600TVL PNP

Specification:

Brand Name: LDARC
Model: 200GT
Item Name: 200mm Ture X Type Carbon Fiber FPV Racing Drone
Version: PNP ( Without Receiver and Battery)

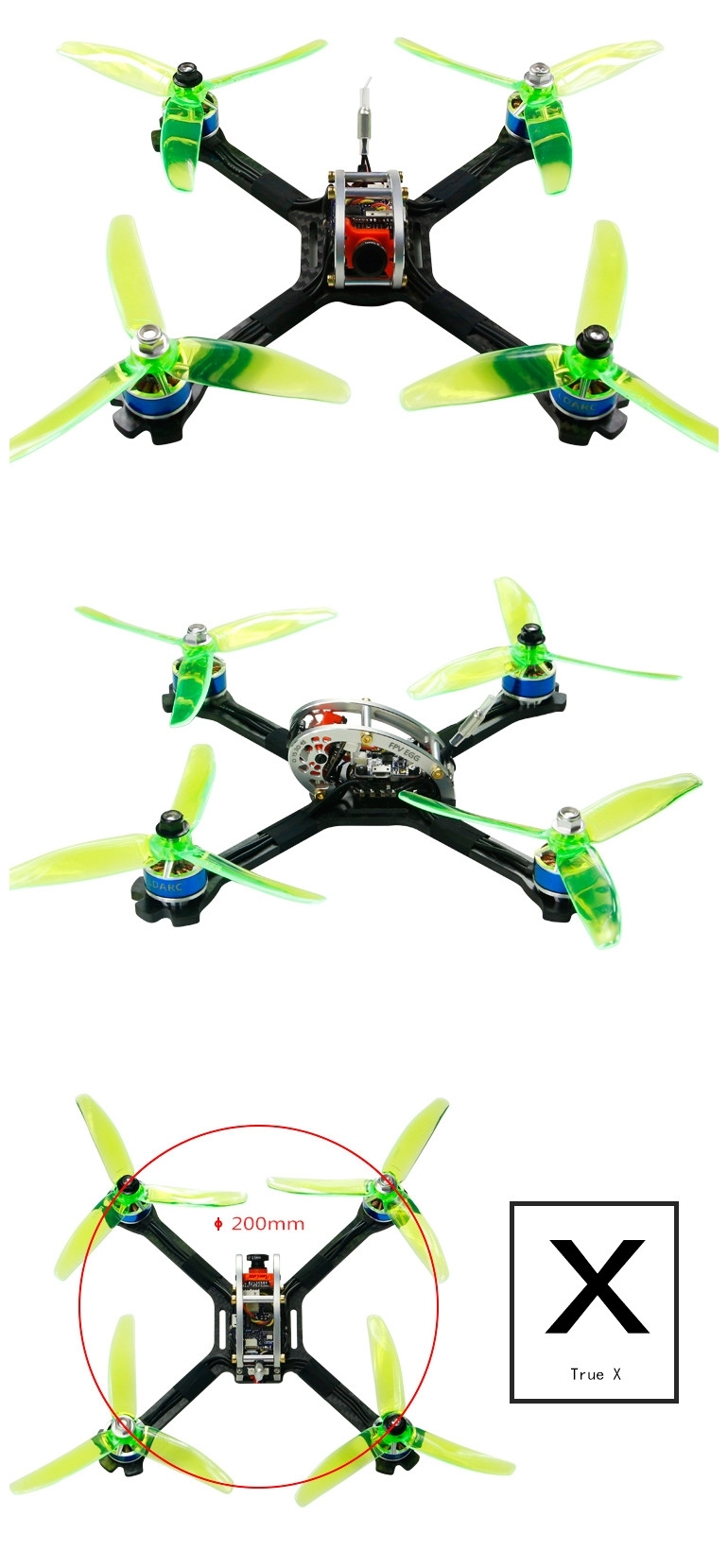

Wheelbase: 200mm
Material: Carbon Fiber & 7075 Aluminum Alloy
Input Voltage: 3-4S
Recommend Battery: 4S 1000-1500mAh above 25C Lipo

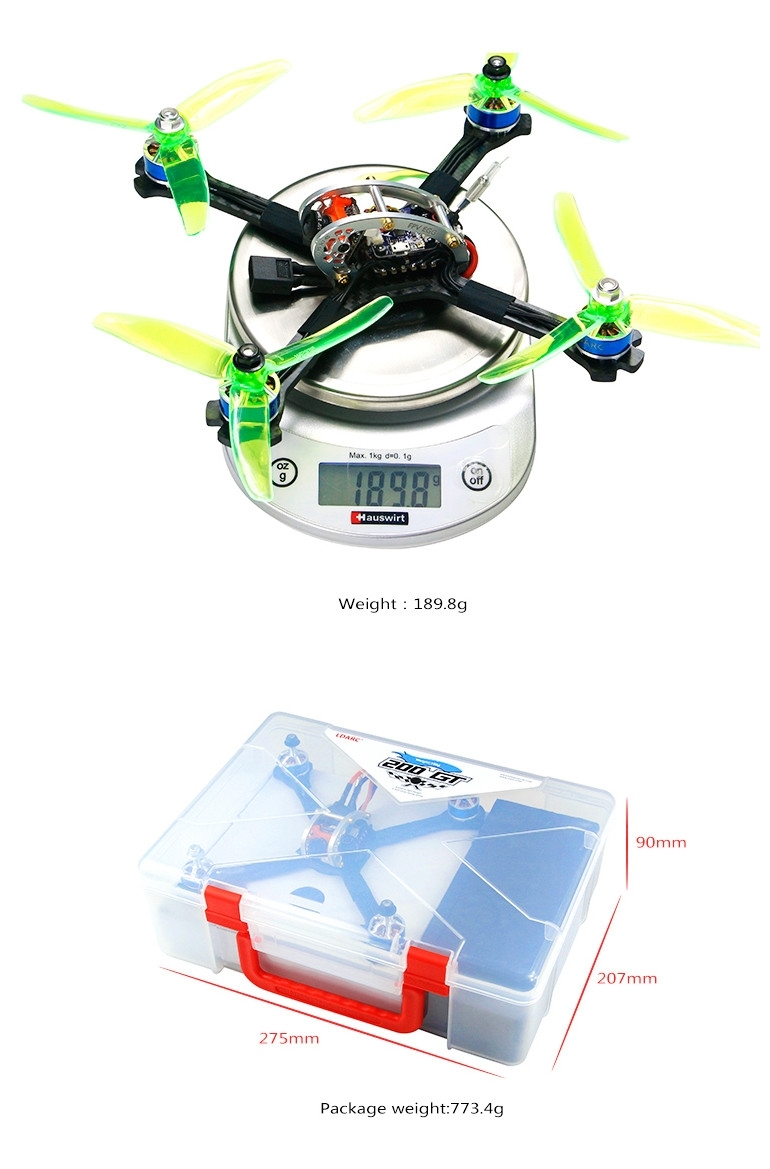

Weight: 190g (Without Receiver and Battery)
Takeoff Weight: 205g

KK20 Flight Controller & ESC Flytower	Flight Controller Firmware: OmnibusF4 SD - Built-in Betaflight OSD Output Voltage for Camera: 5V Size: 25x25mm Mounting Hole: 20x20mm Weight: 3.7g Support DSMX , SBUS and PPM Receiver
KK20 Flight Controller & ESC Flytower	20A 4 In 1 ESC Con. Current: 20A Peak Current: 25A ( 5s) Firmware: BLHeli_S Input Voltage: 2-4S Size: 29x31mm Mounting Hole: 20x20mm Net Weight: 5.3g Support Oneshot, Multishot, DShot150/300 and DShot600
XT1806 2500KV Motor	Motor Width: 22.4mm Motor Height: 30.5mm Shaft Diameter: 5mm Weight: 21.1g ( with Nut)
Q100 VTX	16CH 25mW / 100mW VTX
Camera	600TVL CCD Fov 160 NTSC Camera
Propeller	5040 3-blade Propeller

Features:

-Extreme light weight 5 inch prop racing drone
-Modular design, KK tower F4 with OSD FC, with betaflight firmware

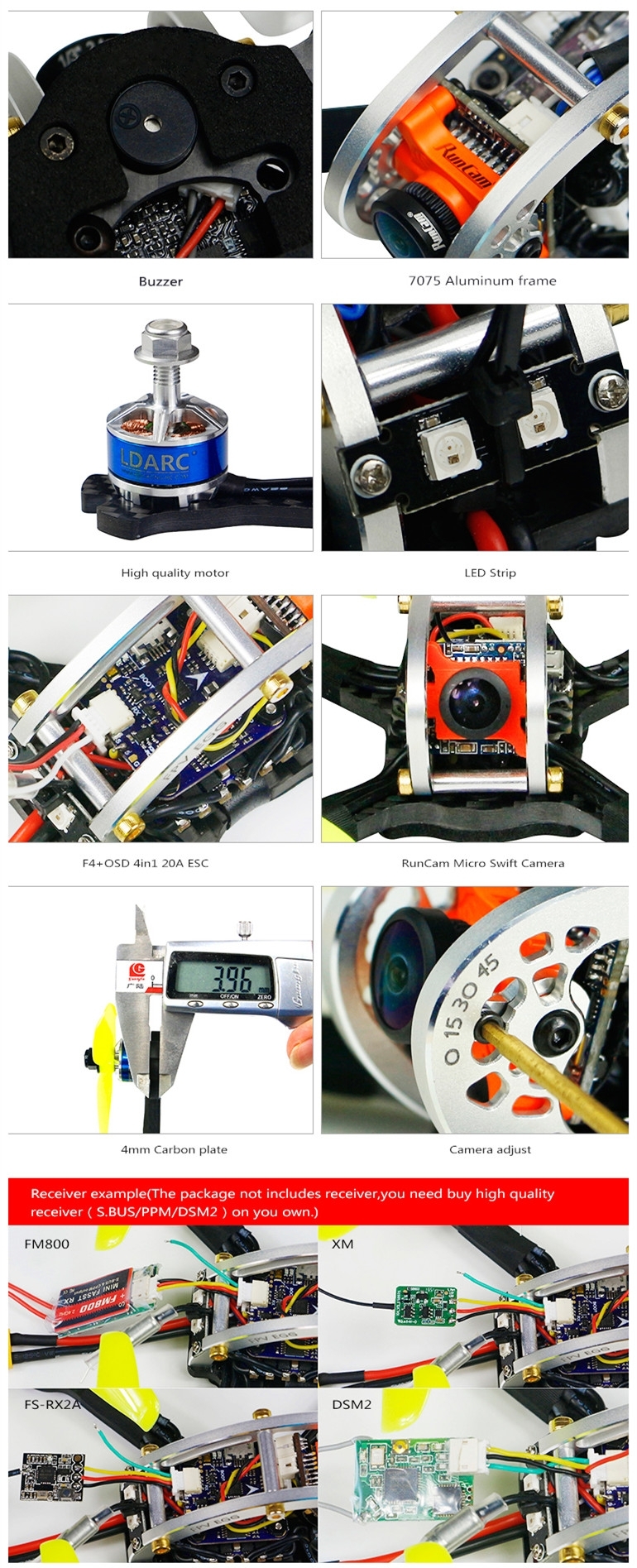

-The structure uses 4mm thickness carbon fiber and 7075 aviation aluminum alloy material, light weight, high strength

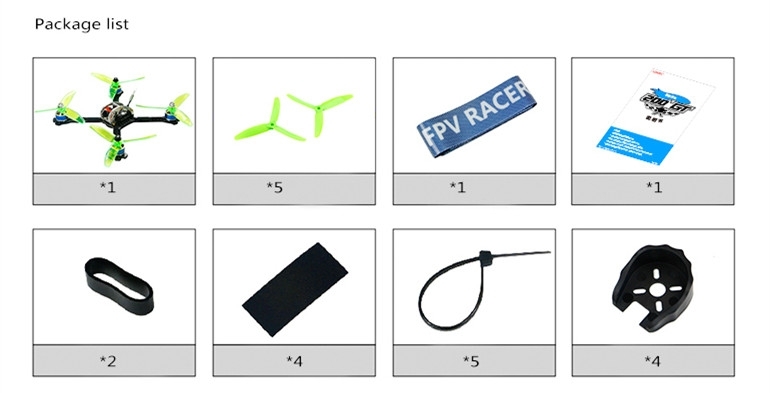

Package Included:

1x LDARC 200GT Drone
5x 5043 Propeller CW & CCW
1x Battery Strap
4x Motor Base

Get your's here: https://api.racer.lt/6ya2
