DJI Phantom 4 - Tested Video Review
01-03-2016

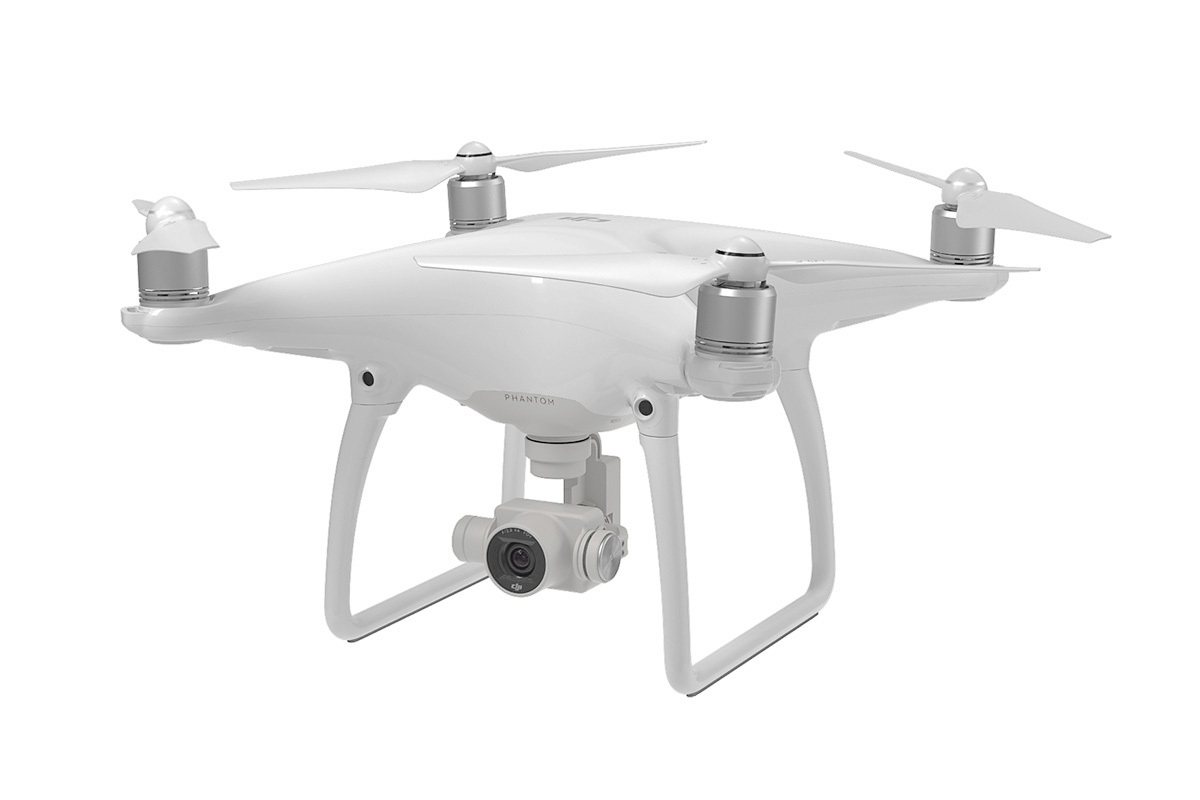

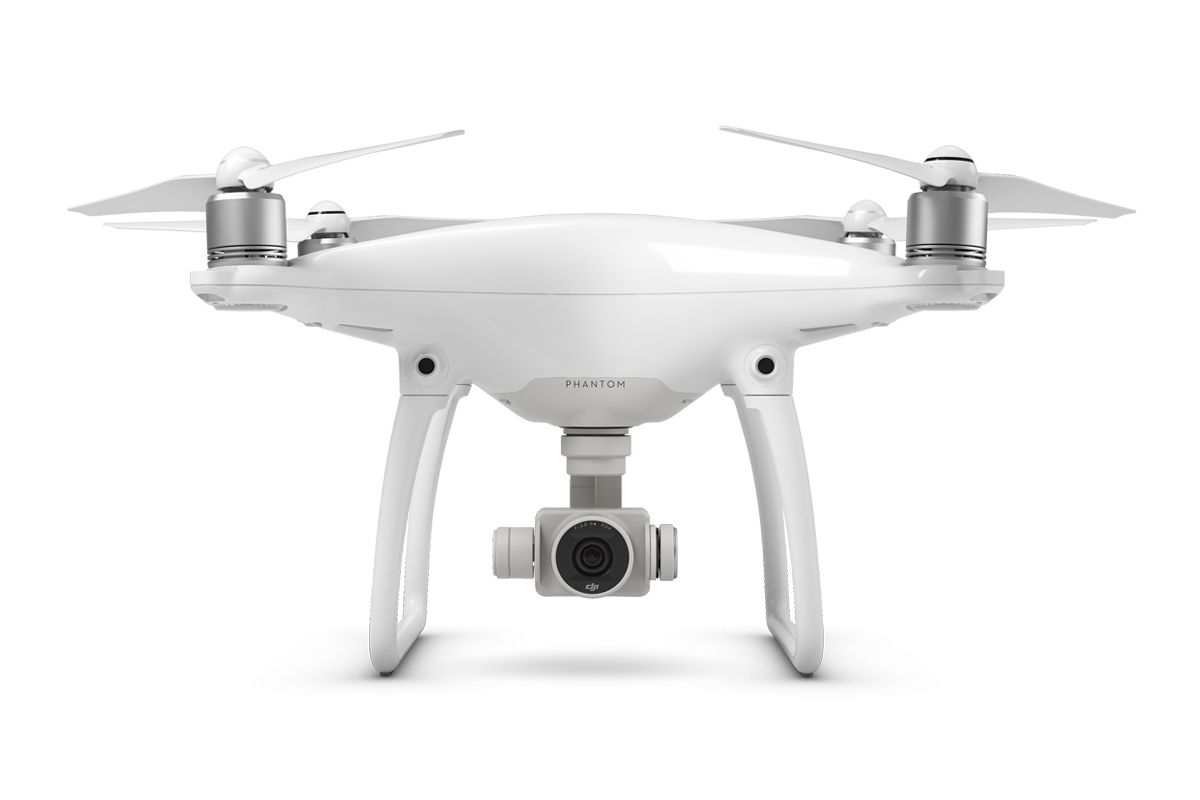

Aircraft
| Weight (Including Battery) | 1380 g |
|---|---|
| Max Ascent Speed | 6 m/s (Sport mode) |
| Max Descent Speed | 4 m/s (Sport mode) |
| Max Speed | 20 m/s (Sport mode) |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) (Software altitude limit: 400 feet above takeoff point) |
| Max Flight Time | Approx. 28 minutes |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Satellite Systems | GPS / GLONASS |
| Hovering Accuracy | Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m |
Obstacle Sensing System
| Obstacle Sensory Range | 2 - 49 feet (0.7 - 15 m) |
|---|---|
| Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) |

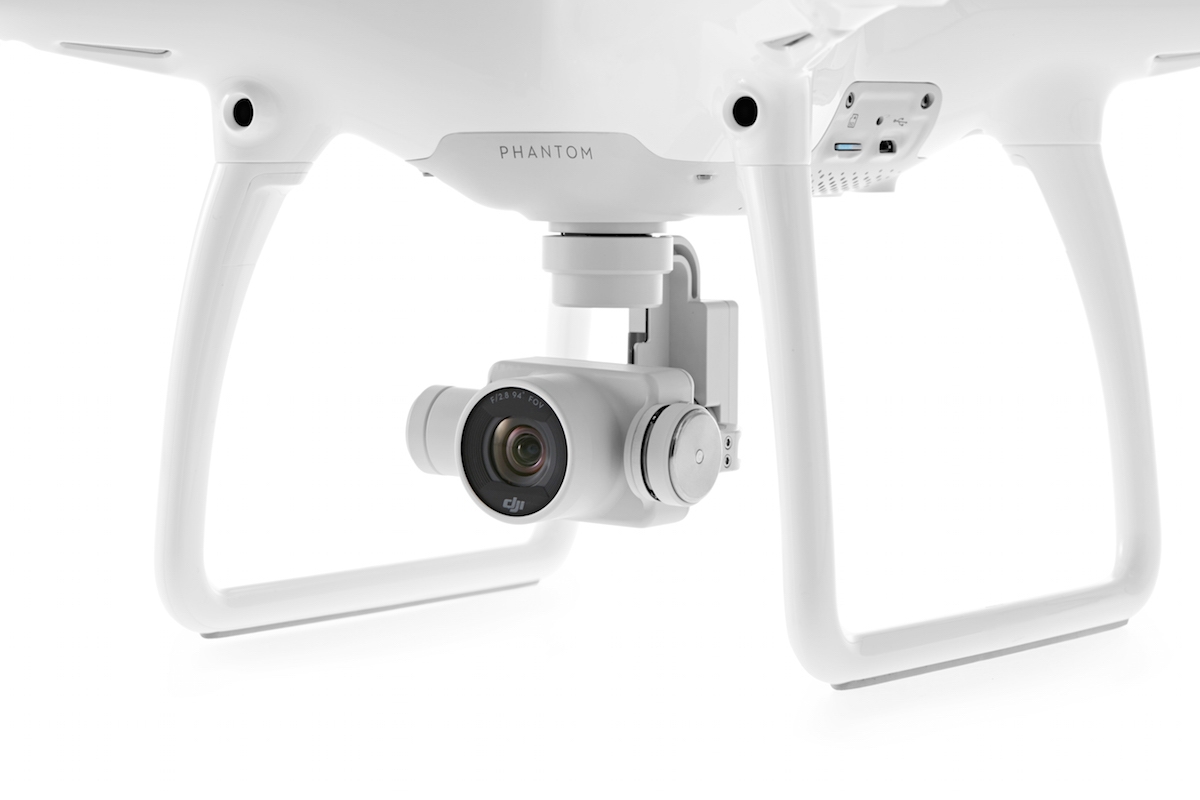

Camera
| Sensor | 1/2.3” Effective pixels:12 M |
|---|---|
| Lens | FOV ( Field Of View ) 94° 20 mm ( 35 mm format equivalent ) f/2.8 focus at ∞ |
| ISO Range | 100 - 3200 ( video ) 100 - 1600 ( photo ) |
| Electronic Shutter Speed | 8 s to 1/8000 s |
| Max Image Size | 4000×3000 |
| Still Photography Modes | Single shot Burst shooting: 3 / 5 / 7 frames Auto Exposure Bracketing ( AEB ): 3 / 5 bracketed frames at 0.7 EV Bias Time-lapse HDR |
| Video Recording Modes | UHD: 4096×2160 (4K) 24 / 25p 3840×2160 (4K) 24 / 25 / 30p 2704×1520 (2.7K) 24 / 25 / 30p FHD: 1920×1080 24 / 25 / 30 / 48 / 50 / 60 / 120p HD: 1280×720 24 / 25 / 30 / 48 / 50 / 60p |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB ) |
| Photo | JPEG, DNG ( RAW ) |
| Video | MP4 / MOV ( MPEG – 4 AVC / H.264 ) |
| Supported SD Cards | Micro SD, Max capacity: 64GB. Class 10 or UHS-1 rating required |
| Operating Temperature | 32° to 104° F ( 0° to 40° C ) |
Charger
| Voltage | 17.4 V |
|---|---|
| Rated Power | 100 W |
Gimbal
| Controllable Range | Pitch: -90° to +30° |
|---|
Vision Positioning System
| Velocity Range | ≤10 m/s ( 2 m above ground ) |
|---|---|
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Operating Environment | Surfaces with a clear pattern and adequate lighting (lux > 15) |
Remote Controller
| Operating Frequency | 2.400 GHz to 2.483 GHz |
|---|---|
| Max Transmission Distance | FCC Compliant: 3.1 mi ( 5 km ); CE Compliant: 2.2 mi ( 3.5 km )( Unobstructed, free of interference ) |
| Operating Temperature | 32° to 104° F ( 0° to 40° C ) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power ( EIRP ) | FCC: 23 dBm; CE: 17 dBm |
| Operating Voltage | 7.4V @ 1.2A |

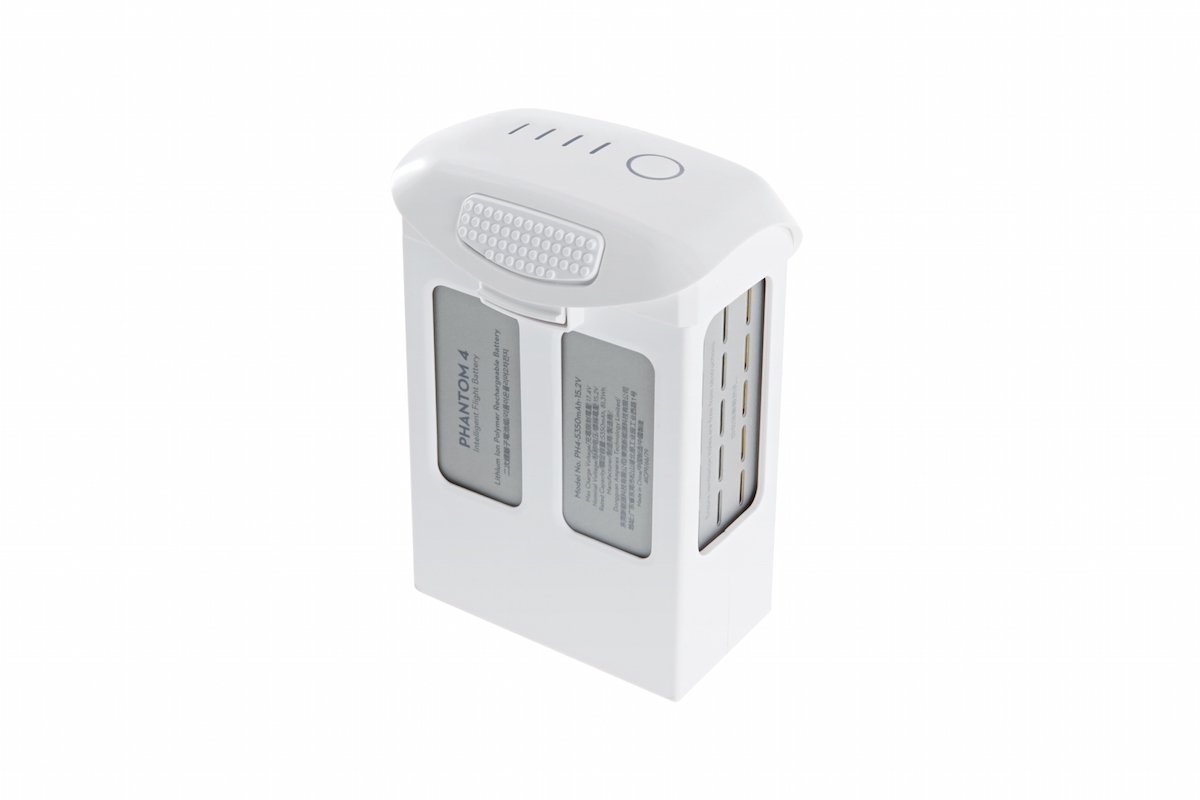

Intelligent Flight Battery ( PH4 - 5350 mAh -15.2 V )
| Capacity | 5350 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 81.3 Wh |
| Net Weight | 462 g |
| Operating Temperature | 14° to 104° F ( -10° to 40° C ) |
| Max Charging Power | 100 W |
