• Tarot FPV racing drone is designed to fly under all circumstances, with its brand new appearance, this 250 racing drone brings us an extraordinary flying experience.
• Smooth top and side hole are for better motivation. Openable canopy is for easier replacement. With adjustable lens, quick-release structure, and light-weight design, Tarot FPV racing drone is ready for a new adventure!

Suggested Equipment：

• Brushless motor: 1806-2280KV TL300H1 / TL300H2
• Brushless ESC: NANO12A (Required) TL300G2 (optional); UBEC power TL2681/ TL300G
• Prop size: 5’’ 3-leaf TL300E
• Lens: PAL standard; TL300M / TL300M2 or NTSC standard; TL300MN / TL300MN2
• Flight Controller: MINI CC3d
• 5.8G TX: TL300N / TL300N2
• 5.8G antenna: TL300K / TL300K2
• Lithium-polymer battery: 11.1V / 2200MAH
• Battery dimension limit: Length 70-120MM / width 37MM / height 27.5MM

Specifications：

• Wheelbase: 250MM
• Neat Height / assembly height: 90.4MM
• Neat length / assembly length: 203MM / 288MM
• Neat width / assembly width: 220MM / 303MM
• Neat weight: 133G

Specification:

• FPV Racing Drone x1
• JST plug x1
• 70MM servo wire x2
• XT60 plug x1
• Battery Strap x1
• Battery Tie x1
• Manual x1

Unpacking

Assembly

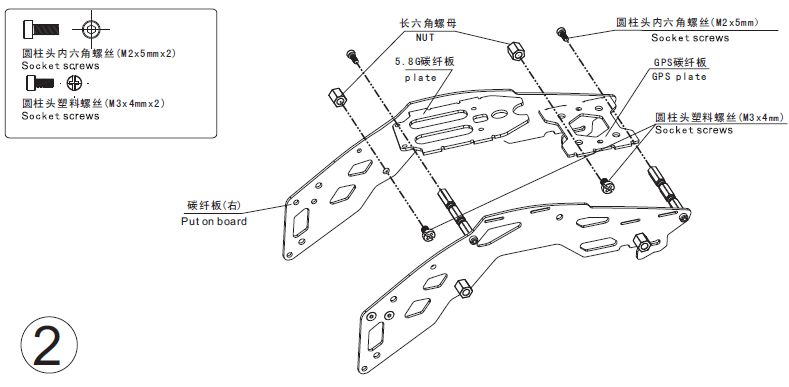

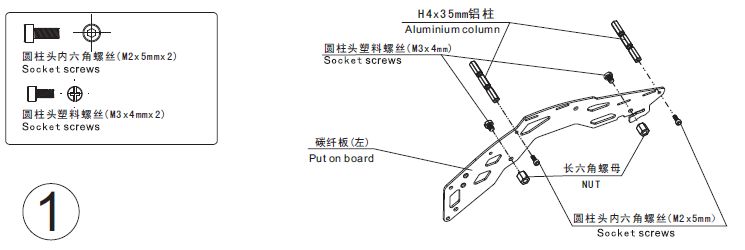

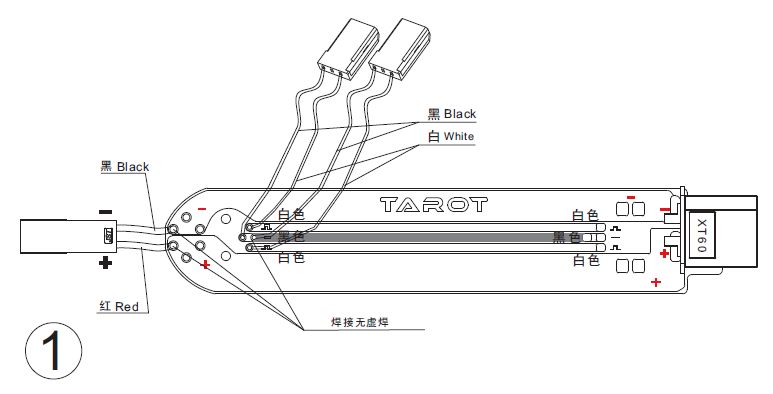

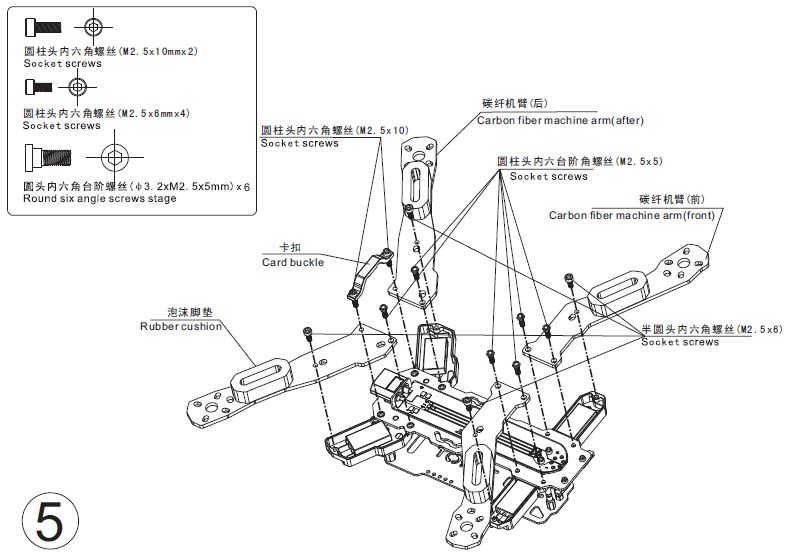

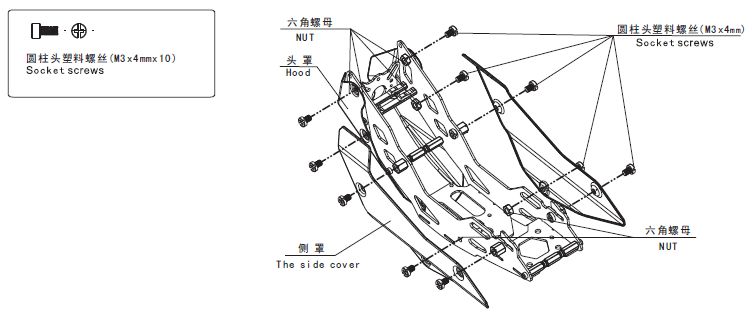

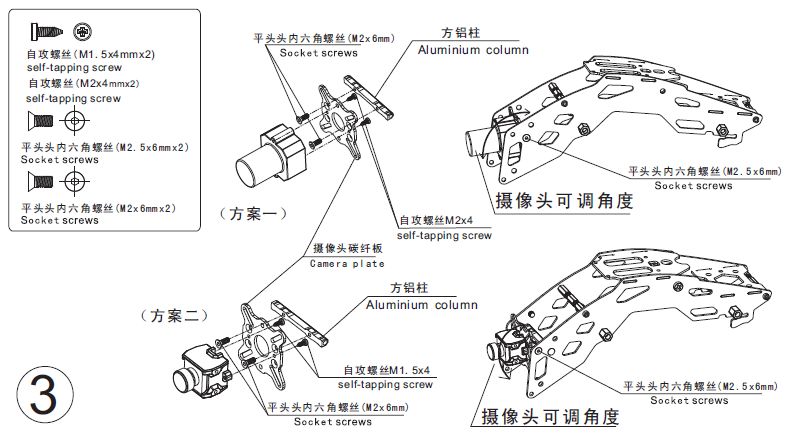

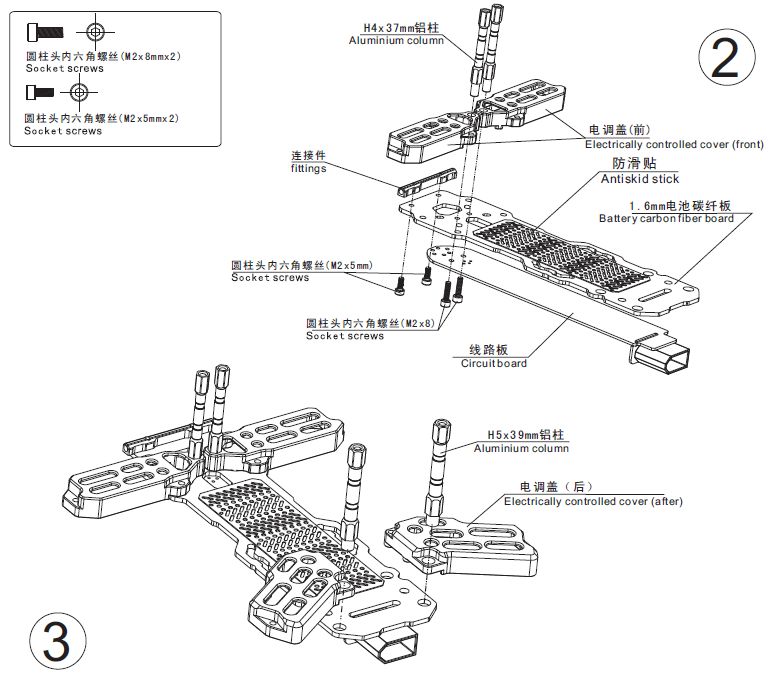

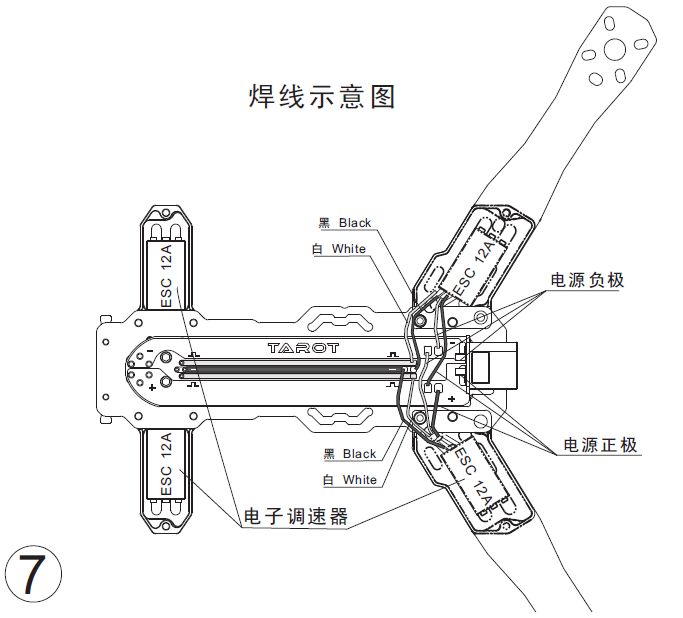

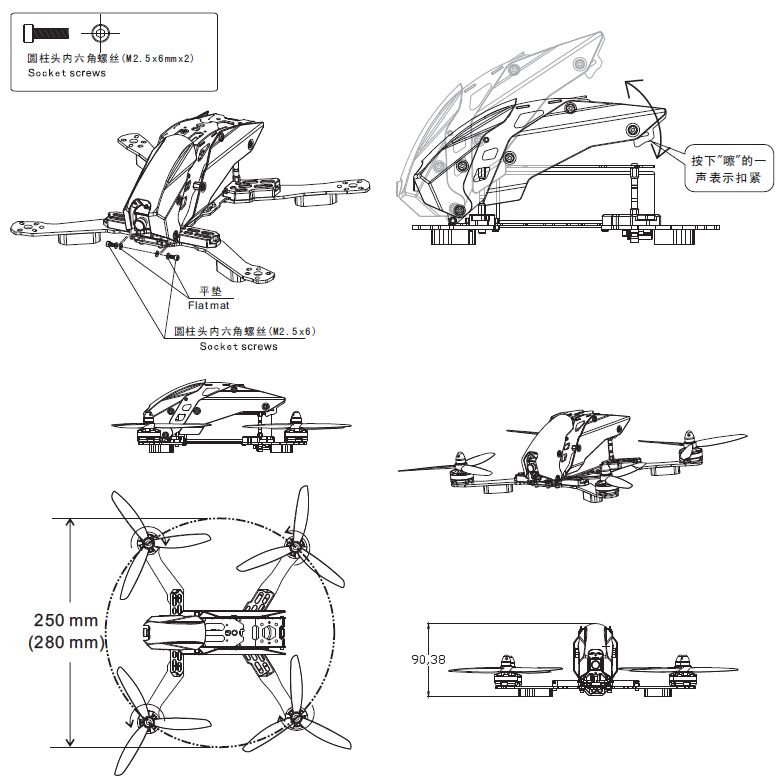

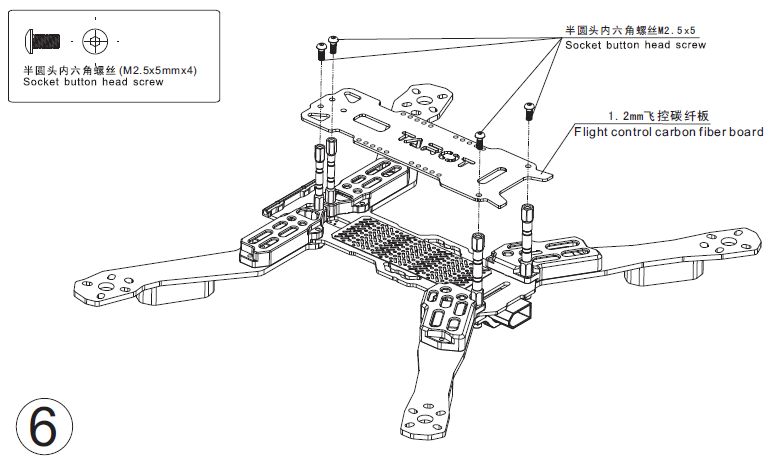

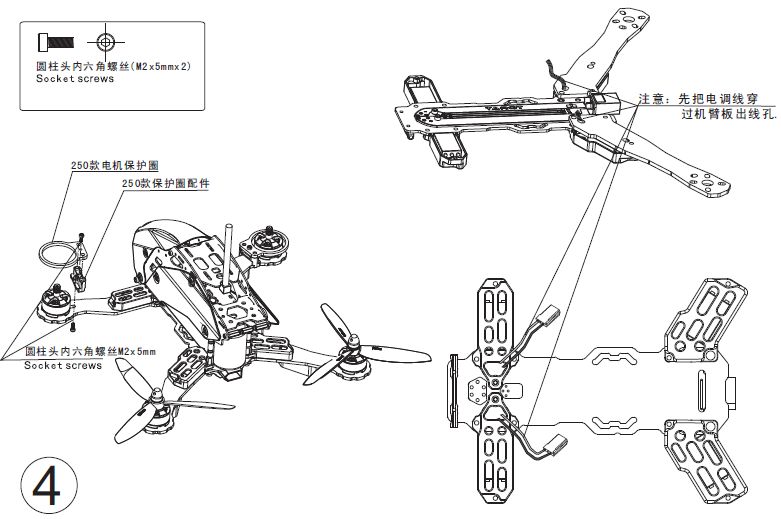

Assembly instructions
