Description:

Brand Name: SKYRC

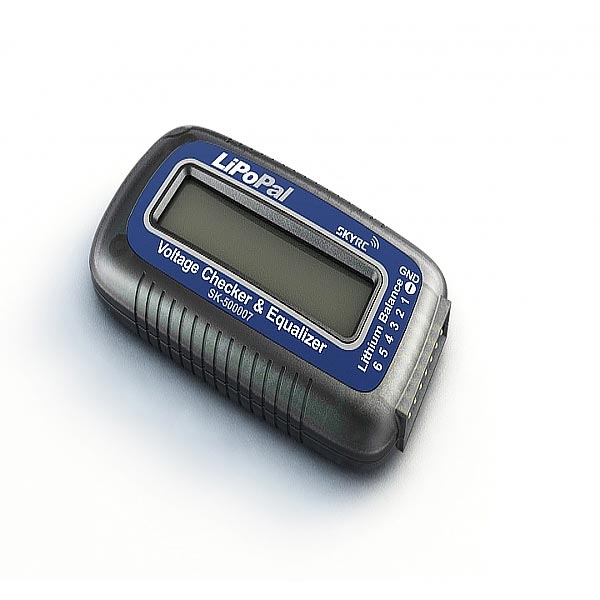

Item Name: SKYRC LiPoPal Battery Voltage Checker

Applicable Battery Pack: 2-6S LiPo

Voltage Display Tolerance: +/-1.5%

Voltage Display Resolution: 0.01v

Voltage Display Range: 0-5v

Balancing Current: 50mA

Operating Temperature: 10~+45°C

Storage Temperature: -20~+60°C

Case Size: 70x38x11mm

Weight: 50g

Features:

There are two functions of this compact device:

1.Battery Checker

The LiPoPal can check the voltage of each cell of a lithium battery pack and remaining capacity in percentage %.

2.Self Voltage Balancer

This program can equalize the individual voltages to their lowest one. Balance operation automatically starts about 5 seconds after the battery pack is connected. When the voltage difference between cells over 0.02V, the balancer will start to work. The corresponding “V” will be blinking when it is balancing. When the voltage difference between cells reaches 0.01V or less, balance operation ends and the device enters the sleep mode and “SLP” will be displayed on the LCD.

Package Included:

1x Battery Voltage Checker
