Realacc XS220 220mm Carbon Fiber 4mm Arm FPV Racing X Frame w/ 5V & 12V PDB
Description:
Brand: Realacc
Item: XS220
Wheel base: 210mm
Weight: 85g
Material: 3K carbon fiber
PDB: 5V & 12V
Thickness of lower plate (integrated frame arm): 4mm
Thickness of upper plate: 2mm
Thickness of side plate: 1.5mm
Features:
Light weight, super stiff.
Full 3K Carbon Fiber airframe featuring a solid 4mm main plate.
Dual purpose FPV and HD camera mounting solution.
Genuine "X" frame, suitable for racing and freestyle flying.
"Bumpers" on the end of the arms to protect the motor during a crash.
With a XT60 PDB integrated BEC (5/12v output)
Suitable propeller size 5 inch.
LiPo battery protection plate included.
Designed around popular 26mm sized cams in cases such as the Lumenier CM-650 or HS1177.
Support to carry HD camera at 35 degree angle(such as the GoPro 4, Mobius, etc).
Recommended Parts (not included):

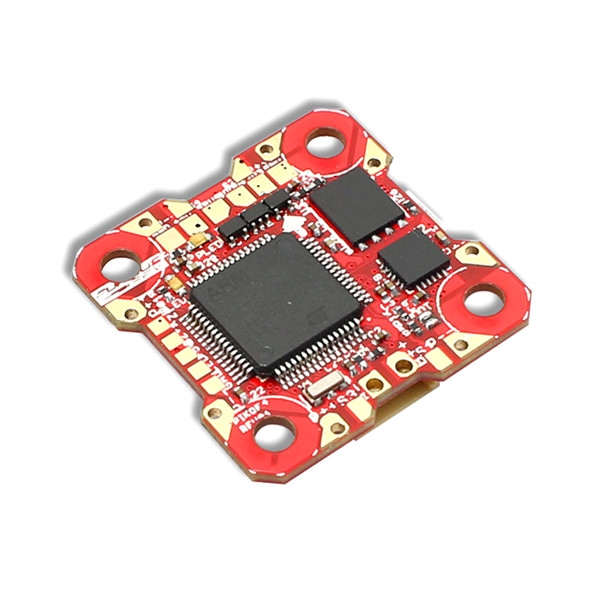

Flight controller (F4/ F3, mounting hole: 30.5*30.5mm ):
F3 Flight Controller Acro 6 DOF/Deluxe 10 DOF
Omnibus Betaflight F4 Flight Controller
F3 Flight Controller Acro 6 DOF/Deluxe 10 DOF
Omnibus Betaflight F4 Flight Controller
Brushless motor (2204/ 2205/ 2206):
KINGKONG 2204 2300KV Brushless Motor
KINGKONG 2204 2300KV Brushless Motor
Racerstar BR2205 motors
Cobra champion CP2205 motors
Emax RS2205 2300KV motor
DYS SE2205 PRO 2300KV / 2550KV motor
DYS Fire 2206 2100KV 2300KV 2600KV 3-4S Motor DYS SE2205 PRO 2300KV / 2550KV motor
Brushless ESC(20A-30A):
Racerstar RS20A V2 Blheli_S 2-4S ESC 16.5 Dshot600
Racerstar RS20Ax4 V2 20A BB2 48MHz Blheli_S 4 in 1 ESC 16.5 Dshot600
Racerstar RS30A V2 Blheli_S 2-4S ESC 16.5 Dshot600
Racerstar RS30Ax4 V2 BLheli_S BB2 4 in 1 ESC 16.5 Dshot600
DYS XSD 20A 3-4S ESC BLHeli_S Dshot600 Dshot300
DYS XSD 30A 3-5S ESC V2 BLHeli_S Dshot600 Dshot300
DYS XSD 20A 3-4S ESC BLHeli_S Dshot600 Dshot300
DYS XSD 30A 3-5S ESC V2 BLHeli_S Dshot600 Dshot300
Battery (4S 1500mAh):
Infinity 4S 14.8V 1500mAh 70C Graphene LiPo Battery XT60
Infinity 4S 14.8V 1500mAh 70C Graphene LiPo Battery XT60
5 inch 3-blade propeller:
10 Pairs Racerstar 5042 3 BladePropeller 5.0mm Mounting Hole
10 Pairs Racerstar 5051 3 Blade Propeller 5.0mm Mounting Hole
10 Pairs Racerstar 5048 3 Blade Propeller 5.0mm Mounting Hole
10 Pairs Racerstar 5040 3 Blade Propeller 5.0mm Mounting Hole
7 Pairs KingKong 5045 3 blade Rainbow Colorful Propeller
Swift camera
TS5828 VTX
Package included:
1 x Realacc XS220 FPV Racing Frame
1 x 5V & 12V PDB
1 x battery strap
8 x M3*6 screw
4 x M3*8 screw

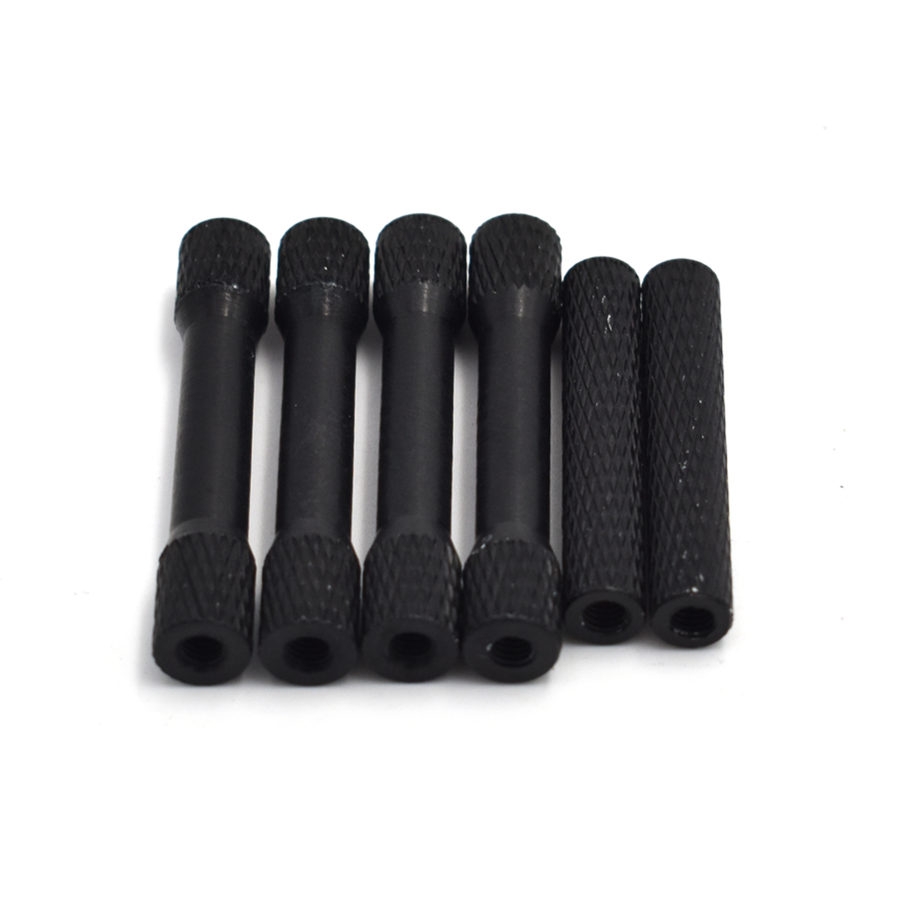

4 x M3*35 aluminum post
4 x M3*29 aluminum post
