Mini AIO DC-DC Step Down Module 4.5-24V Integrated Adjustable & Fixed Voltage Multirotor Spare Part - 3.00 €

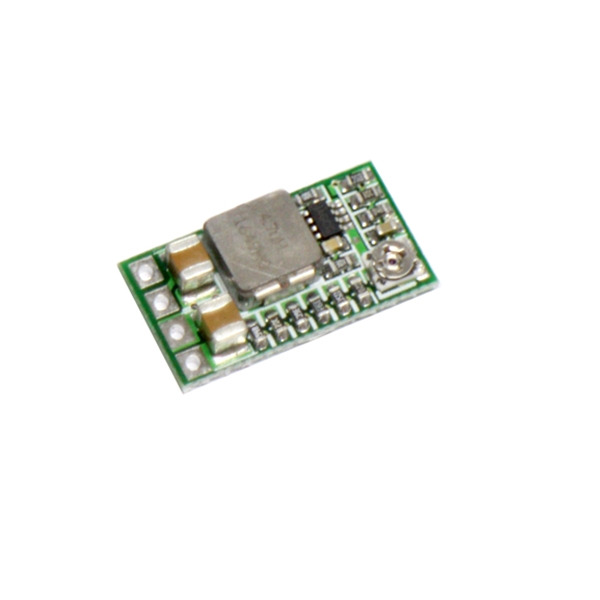

Mini AIO DC-DC Step Down Module 4.5-24V Integrated Adjustable & Fixed Voltage Multirotor Spare Part
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


Mini AIO DC-DC Step Down Module 4.5-24V Integrated Adjustable & Fixed Voltage Multirotor Spare Part





Description:
Item name: Mini AIO DC-DC Module
Input voltage range: 4.5-24V
Output voltage range (adjustable voltage): 0.8-17V
Fixed voltage: 1.8V 2.5V 3.3V 5V 9V 12V
Output current: Max 3A
Frequency: 500Khz
Built in MOSFET
Size: 20mm (L) * 11mm (W) * 5mm (H)
Transfer efficiency: Max 97.5% (6.5 turn 5V 0.7A)
Operating temperature: -40℃~+85℃
Output over voltage protection: no
Full load temperature rise: 40℃
Quiescent current: 0.85mA
Load regulation: ±1%
Voltage regulation factor: ±0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: yes (don't short-circuit for a long time.)
Input reverse polarity protection: no
Package included:
1 x mini AIO DC-DC module
