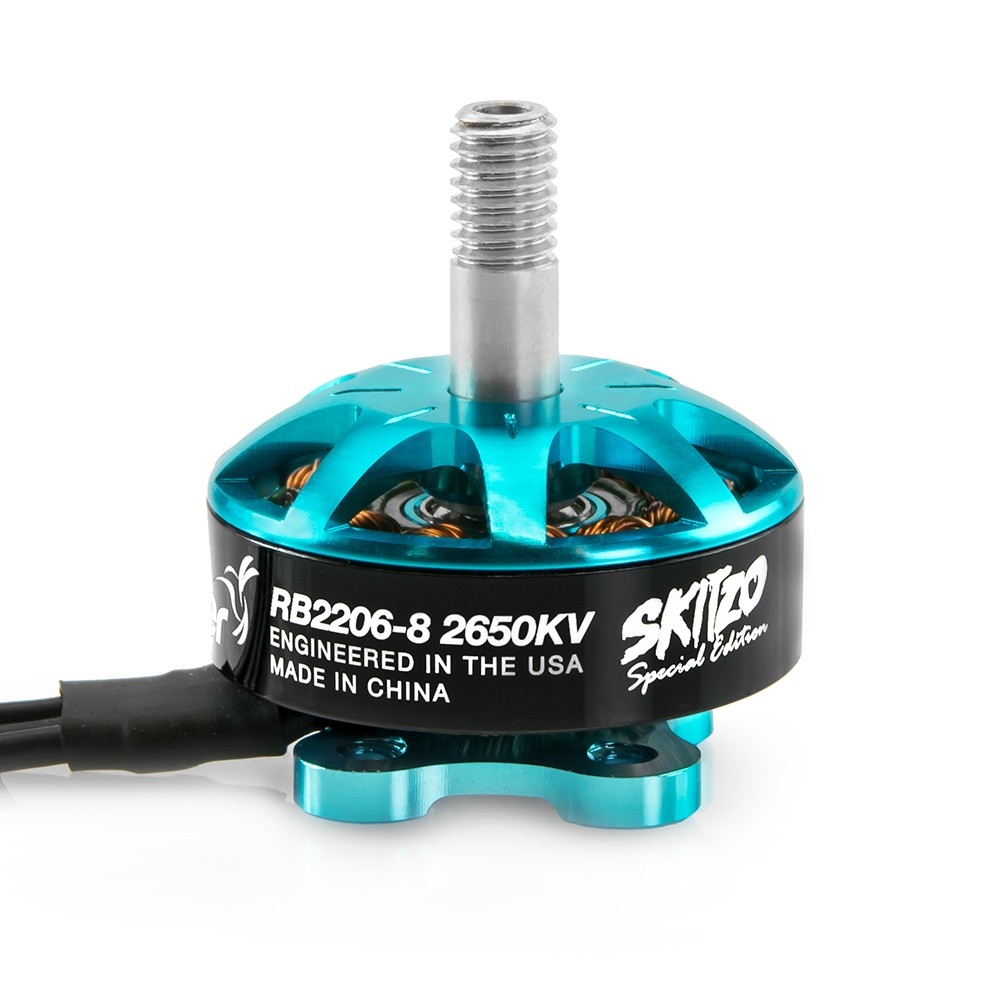

The Lumenier RB2206 2650KV "Skitzo" limited edition motors are super smooth and have incredible power in a lightweight package.
With a 2650kv rating and powerful 2206 stator size the new RB2206 motor fits right in for drone racing and FPV freestyle. With this new 2206, Lumenier now offers very granular Skitzo motor choices from 2204, 2205, and 2206 across various kv ratings providing you great choice when specifying your build components. The new 2206 motors come in at 27g continuing Lumenier's tradition of creating some of the lightest racing/freestyle motors on the market.
The new lightweight desing uses a minimal base with a 16x16mm mounting pattern, popular with today's racing and freestyle drones. The motor also has a steel through shaft for added crash durability. You'll never have to worry about threads stripping on this shaft.
Carefully assembled and dynamically balanced in Lumenier's climate controlled facility, the Lumenier 2206 motors deploy new glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.
Brand name: Lumenier
Item name: RB2206-8 2650KV SKITZO Brushless Motor
| Kv | 2650 |
| Bearings | Stainless Steel Bearings |
| Configuration | 12N14P |
| Windings | 8 turn DLRK |
| Termination | D (Delta) |
| Stator Diameter | 22mm |
| Shaft Diameter | 3mm |
| Idle Current @12.6v (Io) | 0.76 A |
| Cells (LiPo) | 2-4S |
| Max Continuous Current (A) 60s | 25A |
| Max Burst Current <10s | 35A |
| Max Continuous Power (W) 60s | 400W |
| Max Efficiency Current | (2.2-6A) 80% |
| Internal Resistance (Rm) | 240mΩ |
| Motor Wire Length | 160mm |
| Motor Connection | Bare Wire |
| Motor Dimension | 27x18mm |
| Weight | 27g |
Package Included:
1 x Lumenier RB2206-8 2650KV SKITZO Motor
1 x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
4 x M3x6 Button head screws
