Thickness of top plate: 2mm
Thickness of bottom plate: 4mm
Vertical side plates: 1mm

Net weight: about 39.8g
Arm Width(Narrowest):9.6mm
Motor Mount Pattern: 9*9mm-13*13mm
Max Stack Height :25mm
FC Mounting Holes:20*20mm
Motor c-clip hole: φ8mm

Features:
- Squish X Hybrid design
- MINI design,164mm wheelbase, super light, only 39.8g
- 3K High Strength Carbon Fiber Plate, durable from Crashing
- Super lightweight design, decrease the weight but ensure the iX4 Lite V3 strong enough
- Motor mount strengthen to protecting motors from crashing
- Camera mounting plate with fashion design to ensure that the fast forward when you can see the front

Recommend parts (package not included):

ESC: 20x20mm 20A-30A 4in1 ESC

Propeller: 4052 4 Inch Prop

Battery: 4S 850mAh Battery

Flight Controller: 20x20mm F3 / F4 FC

Motor: 11XX ; 14XX Motor

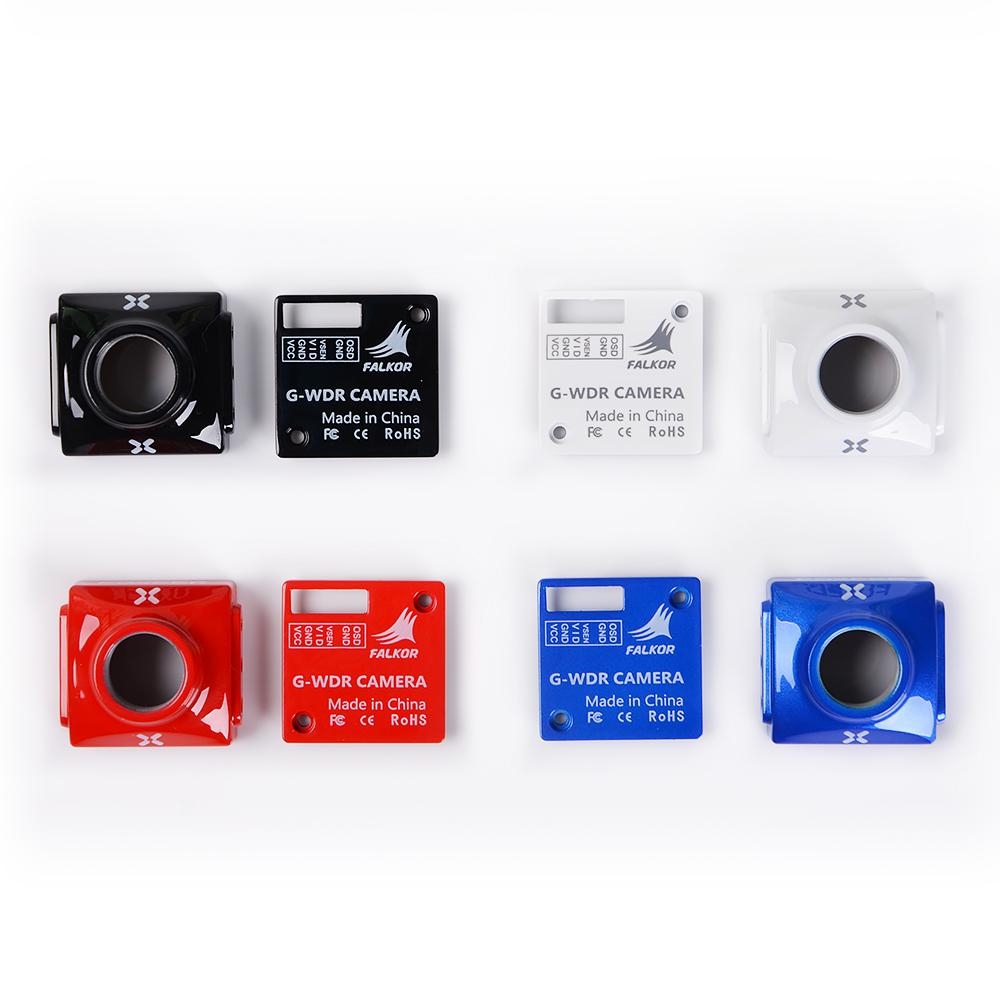

Camera: Support 19mm wide micro camera
