Description:
Taking aerial photos becomes increasingly popular. With a quadcopter which has responsive ESCs and an outstanding aerial camera, you can achieve in both photo-taking and in piloting the drone.
Main Features:
- The efficient ESC can produce responsive throttle changes.
This DYS XS30A ESC features the high-performance Silabs EFM8BB2 50MHz MCU chip and  the new BLHeli_S firmware. Therefore, you will be able to run motors at high KV since the EFM8BB2 can handle up to 500k eRPM. 1 - 2ms signal input, Oneshot125, Oneshot42, and Multishot are dedicated to fast throttle changes.
- Amazing aerial video-taking.
The RunCam Swift Camera adapts well to different FPV scenes due to its accurate exposure algorithm. The 2.8mm lens and 90-degree Horizontal FOV are intended for extraordinary FPV.
- Long-lasting thrust.
-The EMAX RS2205 brushless motor performs smoothly with highest-grade N52 magnets and long lasting bearings, thus providing an amazing thrust of more than 1,000g. Coordinating with an efficient cooling system, the magnets rotate constantly even at high HV.

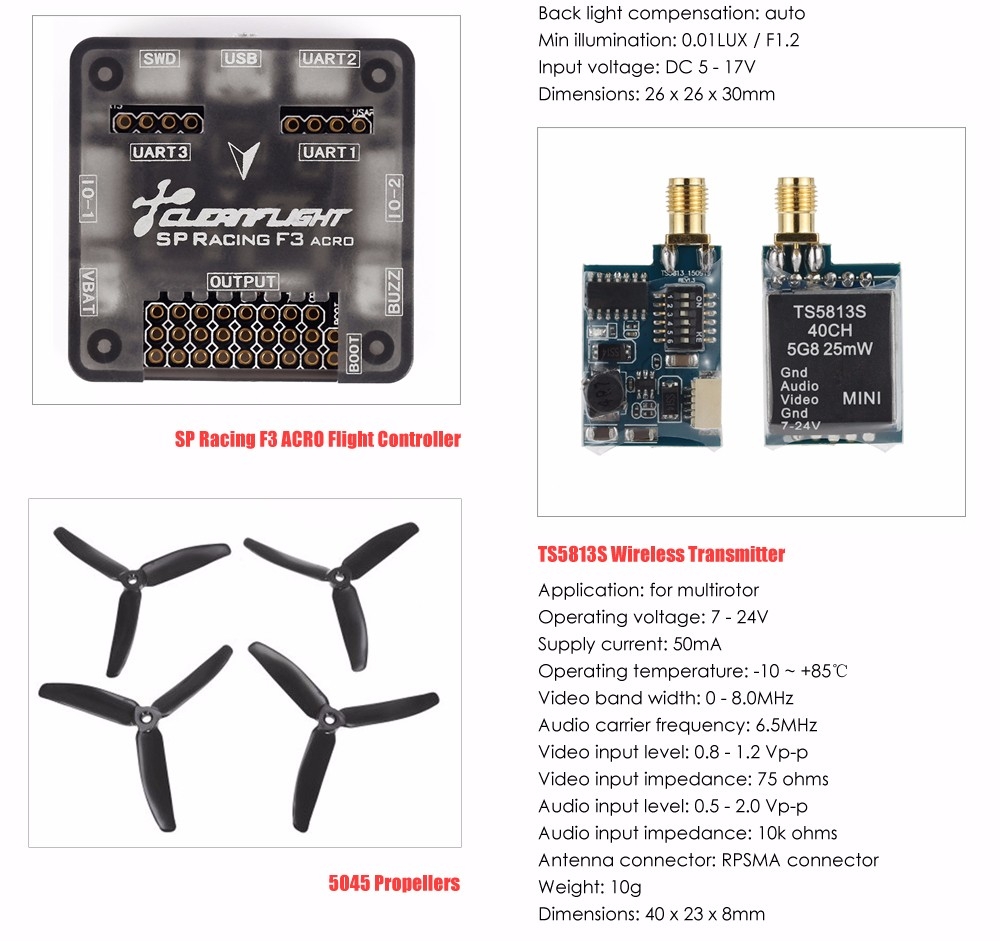

- The flight controller offers much faster loop time and supports CC3D, CJMCU, and Sparky.
The Naze32 SP Racing F3 ACRO flight controller, offers cross-platform GUI (Windows / OSX / Linux) so that you can enjoy excellent 6DOF pilot experience. The onboard high-capacity black box stores sensor data which allows you to easily improve next flight performance.
Taking aerial photos becomes increasingly popular. With a quadcopter which has responsive ESCs and an outstanding aerial camera, you can achieve in both photo-taking and in piloting the drone.
Main Features:
- The efficient ESC can produce responsive throttle changes.
This DYS XS30A ESC features the high-performance Silabs EFM8BB2 50MHz MCU chip and  the new BLHeli_S firmware. Therefore, you will be able to run motors at high KV since the EFM8BB2 can handle up to 500k eRPM. 1 - 2ms signal input, Oneshot125, Oneshot42, and Multishot are dedicated to fast throttle changes.
- Amazing aerial video-taking.
The RunCam Swift Camera adapts well to different FPV scenes due to its accurate exposure algorithm. The 2.8mm lens and 90-degree Horizontal FOV are intended for extraordinary FPV.
- Long-lasting thrust.
-The EMAX RS2205 brushless motor performs smoothly with highest-grade N52 magnets and long lasting bearings, thus providing an amazing thrust of more than 1,000g. Coordinating with an efficient cooling system, the magnets rotate constantly even at high HV.
- The flight controller offers much faster loop time and supports CC3D, CJMCU, and Sparky.
The Naze32 SP Racing F3 ACRO flight controller, offers cross-platform GUI (Windows / OSX / Linux) so that you can enjoy excellent 6DOF pilot experience. The onboard high-capacity black box stores sensor data which allows you to easily improve next flight performance.
Specifications
General |
Type: Antenna,Camera,ESC,Flight Controller,Frame Kit,Motor,Propeller,Transmitter |
|---|---|
Motor |
KV: 2300
Configuration: 12N14P Stator Diameter: 22mm Stator Length: 5mm Shaft Diameter: 3mm Motor Dimensions: 27.9 x 31.7mm (diameter x length) No. of Cells: 3 - 4 S (12.6 - 16.8 V) |
Camera |
Video Resolution: 600TVL (horizontal resolution) |
Racing Quadcopter Parameters |
Wheelbase: 190mm |
Dimension and Weight |
Package weight: 1.100 kg
Package size (L x W x H): 28.00 x 18.00 x 8.00 cm / 11.02 x 7.09 x 3.15 inches |
Package Contents |
Package Contents: 1 x GB190 Carbon Fiber Frame (with PDB), 1 x SP Racing F3 ACRO Flight Controller, 1 x RunCam Swift Camera, 1 x Aomway 5.8G 3dBi Antenna, 4 x EMAX RS2205 2300KV Motor, 4 x DYS XS30A ESC, 1 x TS5813S Transmitter, 4 x 5045 Propeller |
