Main Features:
- Premium 3K full carbon fiber chassis, sturdy and light
- 5.8G video transmission, 600TVL HD, 120-degree FOV, i.e., enjoyable FPV experience
- 32-bit F3 brushed flight controller with STM32F303CCT6 and MPU6050
- High RPM 8520 coreless motor supports 2S voltage input
- Beautiful body shell with rich colors and durable coating
Specifications:
Carbon Fiber Chassis
Material: 3K full carbon fiber
Wheelbase: 90mm
Thickness: 1mm
Weight: 4g

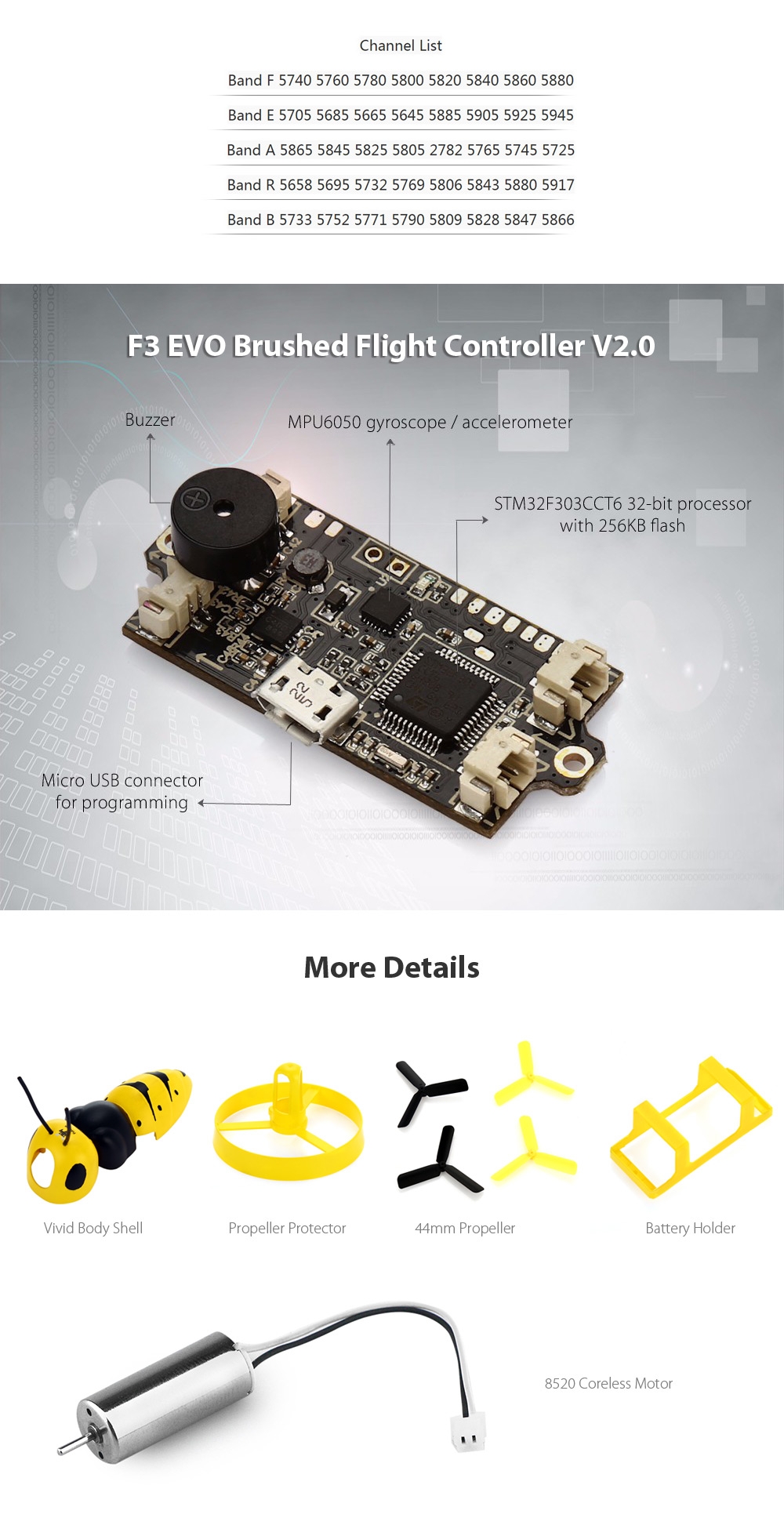

F3 Flight Controller
STM32F303CCT6 32-bit processor ( 256KB flash )Â
MPU6050 gyroscope / accelerometer
Micro USB connector for programming
Filtered voltage output: 5V 500mA and 3.3V 500mA
Voltage input, 1 - 2S LiPo
Firmware: CleanFlight support, BetaFlight ready
Dimensions:Â 4.6 x 2cmÂ
Weight:Â 4g
8520 Coreless Motor
Lead length: 60mm
Shaft length: 5.2mm
Motor height: 20mm
Rated voltage: 7.4V DC
No-load current: 120mA ( max. )
Load current: 1200mA ( max. )
RPM: 46000 ( no-load ); 38500 ( load )
Weight: 5g / piece
Image Transmission
Resolution:Â 600TVL
TV system:Â NTSC
Min. illumination:Â 1 lux
Field of view:Â 120 degree
Input voltage:Â 2.5 - 5V ( 1S LiPo )
Output power:Â 25mW
Frequency range:Â 5645 - 5945MHz
Channels:Â 40, including RaceBand ( Band R )
FrSky XM 16CH Receiver
Size: 15 x 10 x 3.5mm
Weight: 1g
Channels: up to 16CH from SBUS ( CH 1 - CH 15 for PWM, CH 16 RSSI for FC )
Operating voltage: 3.5 - 10V
Operating current: 20mA at 5V
Receive distance: more than 600m
Onboard RSSI output: analog 0 - 3.3V
Firmware upgradeable: yes
Fail-safe: yes
Compatibility: FrSky D16 Mode transmitters
Specification
General |
Type: Frame Kit |
|---|---|
Dimension and Weight |
Product weight: 0.059 kg
Package weight: 0.179 kg Product size (L x W x H): 9.00 x 13.00 x 2.00 cm / 3.54 x 5.12 x 0.79 inches Package size (L x W x H): 17.20 x 14.20 x 5.20 cm / 6.77 x 5.59 x 2.05 inches |
Package Contents |
Package Contents: 1 x Carbon Fiber Chasiss, 1 x Body Shell, 5 x Propeller Protector, 1 x F3 Flight Controller, 1 x Connection Cable, 1 x FrSky XM 16CH Receiver, 1 x Battery Holder, 1 x 5.8G 40CH 600TVL FPV Camera, 6 x Motor, 12 x Propeller, 1 x Pack of Screws |
