Specifications:
Brand Name: EACHINE
Mode Name: US65/UK65
Item Name: 1S 65mm Brushless Whoop racing drone BNF
Wheelbase: 65mm
Size: 81mm*81mm*36mm
Weight: 21.5g(without battery)
Weight:28g(with Original 250mah lipo battery)
| SE0603 KV19000 Motor |
Mode: SE0603 KV19000 Configu-ration:9N12P Stator Diamter:6mm Stator Length:3mm Shaft Diameter:Φ0.8mm Motor Dimension(Dia.*Len):Φ9mm*15.5mm Weight(g):1.8g No.of Cells(Lipo):1S |
| Flight controller |
Firmware: Betaflight_3.4.0_Crazybee Betaflight target: CRAZYBEEF3FR(Frsky version) CRAZYBEEF3FS(Flysky version) MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Board weight: 3.5 g Power supply: 1S battery input (DC 3.5-4.35V) Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Frsky receiver with telemetry(D8/D16 switchable) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 14A Built-in 5V 0.8A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready |
| Onboard 4in1 6A ESC |
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v) Current: 6A continuous peak 7A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_L_5_REV16_6.HEX Default protocol: DSHOT600 |
| Frsky receiver Version |
SPI BUS receiver Frsky D8/D16 switchable Compatible both D8 and D16 transmitter Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Flysky receiver Version |
SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| AIO Camera&VTX |
Output power: 25mw Frequency: 48CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Smartaudio ready Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 6 bands 48 channels With Raceband: 5474 5945 MHZ Size: 13.9"12.0mm ( L*W ) Weight: 3g |
| Lipo Battery |
Capacity:250mAh Voltage:3.8v Continuous Discharge Rate: 40C Instantaneous discharge rate: 80C Size: 60mmx18mmx7mm Weight: 6.5g Connector: PH2.0 |
Features:
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
Powerful Brushless motor and Smooth ESC
Betaflight OSD support ,easy to get RSSI , Voltage and other info from your goggles
Adjust the settings and the PID of the flight controller via OSD
Frsky version support both D8 and D16 transmitter
Full telemetry function ready
Head lights ready
Camera angle adjustable
Real Bind and Fly version
Package Included:
1 x 65mm Brushless whoop Frame (US or UK to choose)
1 x Crazybee F3 FC (Frsky and Flysky option)
4 x SE0603 KV19000 Motor
1 x 31mm propeller(4cw+4ccw)
1 x AIO Camera & VTX with smartaudio
3 x 3.8v 250mah 40C/80C battery
1 x 1S06 6 way Lipo/LIHV charger

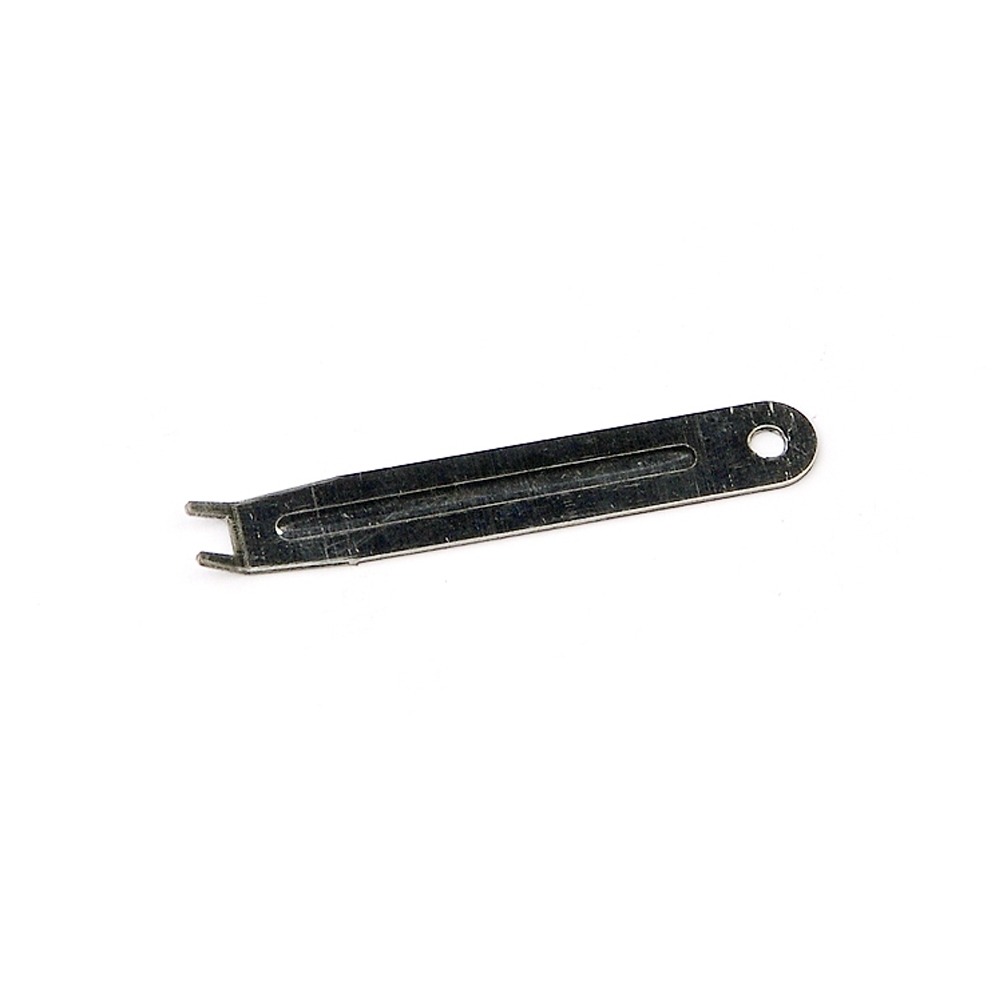

1 x Propeller disassemble tool
1 x Screwdriver
How to use External recevier on Crazybee F3 flight controller, Download
Notes: 1. Package don’t include Power Adapter,suggest 12V 3A power adapter
2. FrSky LBT EU Firmware D16 Transmitter can not compatible with FrSky version drone. You can change your transmitter to LBT EU Firmware D8 version or International version.
3. Please don't upgrade the ESC firmware to the newest one. Because it will lost configuration so damage motors . If you have upgraded to 16.7, please try to adjust the Starput Power to 1.00.
