dys BX1306 2300KV CCW Brushless Motor for RC Quadcopter

dys BX1306 2300KV CCW Brushless Motor for RC Quadcopter
Seller: GearBest,


dys BX1306 2300KV CCW Brushless Motor

Main Features:
● Low vibration motor great for flying
● To make aircraft more stable
● Less operating noise
● More efficient
● Bearing long life

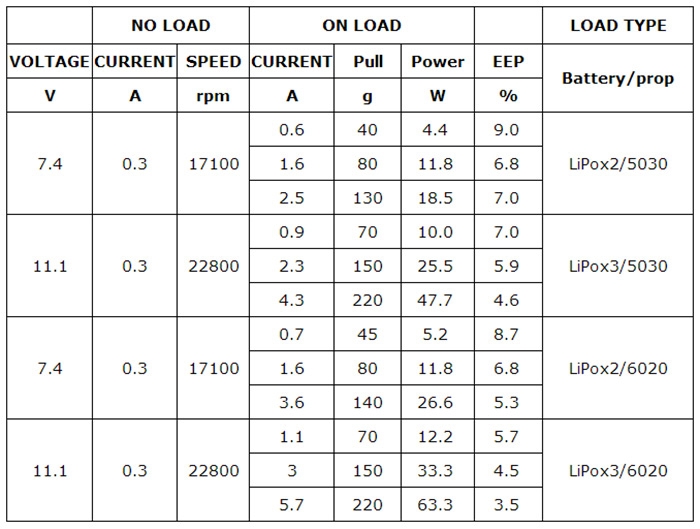

Specification

General

Brand: DYS
Type: Motor

Motor

KV: 2300
Configuration: NP
Stator Diameter: 13mm
Stator Length: 6.0mm
Shaft Diameter: M5
Motor Dimensions: 18 x 15.1mm
No. of Cells: 2 - 3S
Max. Continuous Current (A): 5.7A
Max. Continuous Power (W): 63.3W
Internal Resistance: 0.54ohm

Dimension and Weight

Product weight: 0.012 kg
Package weight: 0.050 kg
Product size (L x W x H): 1.80 x 1.80 x 2.61 cm / 0.71 x 0.71 x 1.03 inches
Package size (L x W x H): 3.00 x 3.00 x 4.00 cm / 1.18 x 1.18 x 1.57 inches

Package Contents

Package Contents: 1 x CCW Motor, 1 x Accessory Pack
