Description:
Chimp 180mm FPV racing drone flies nimbly in the air because of the high thrust-to-weight ratio. Its 700TVL HD aerial camera presents the fascinating panoramic view to you via the 5.8G image transmission.
Main Features:
- Its robust 3K full carbon fiber frame has a wheelbase of 180mm and a perfect "X" configuration
- MX2205 2300KV brushless motor with high RPM generates a thrust of 1,050g, pushing thrust-to-weight ratio to about 8:1

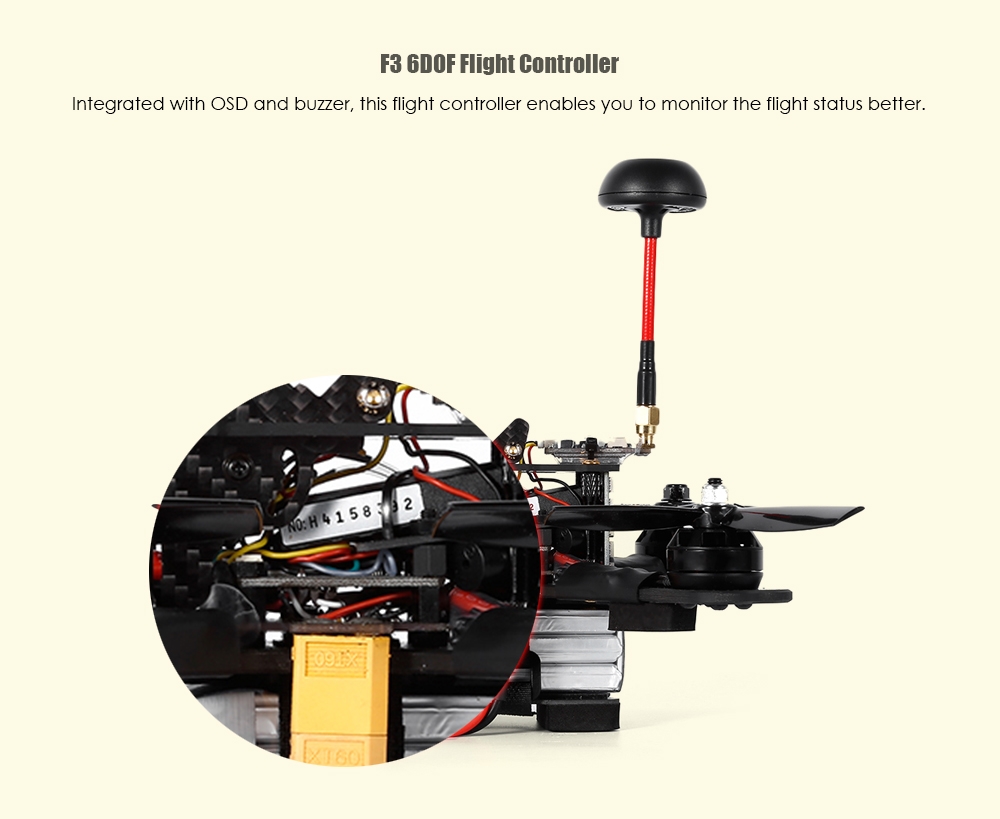

- Integrated with OSD and buzzer, the F3 6DOF flight controller helps you to monitor the flight better
- 700TVL HD CMOS camera, 5.8G real-time video transmission, 40-channel wide coverage
Specifications:
Carbon Fiber Frame
Wheelbase: 180mm
Bottom board: 4mm
Lateral board: 2mm
Other board: 1.5mm
Compatibility: 4 inch propellers
MX2205 Motor
Model: MX2205
KV: 2300
Weight: 28g / piece
Input voltage: 3 - 4S LiPo
Max. thrust: 1,050g
BLHeli 30A ESC
Continuous current: 30A
Peak current: 40A ( 10 seconds )
Voltage: 2 - 4S
Firmware: BLHeli
BEC: no
Programmable: yes
Size: 24 x 14 x 6mm
Net weight: 7g
Camera
Sensor: CMOS
Resolution: 700TVL
TV system: PAL
Antenna: 5.8G mushroom antenna
Video transmitter: 5.8G 40CH 25mW / 200mW switchable
Flight controller: F3 6DOF with OSD and buzzer
Battery: 1500mAh 11.1V 3S 30C LiPo ( included )
Propeller: 4045 three-blade
LED taillight: yes
Receiver: FLYSKY FS - iA6
Transmitter: FLYSKY FS - i6
Balance charger: E3
Specification
General |
Type: Frame Kit |
|---|---|
Racing Quadcopter Parameters |
Wheelbase: 180mm |
Motor |
Model: MX2205
KV: 2300 No. of Cells: 3 - 4S LiPo CW / CCW: CCW,CW Maximum Thrust: 1,050g |
Connectivity |
Channel: 6-Channels
Remote Control: 2.4GHz Wireless Radio Control Mode: Mode 2 (Left Hand Throttle) Transmitter Power: 4 x 1.5V AA (not included) |
Camera |
Video Resolution: 700TVL
Video Standards: PAL Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli |
Battery |
Battery (mAh): 1500mAh 11.1V 3S 30C LiPo ( included ) |
Dimension and Weight |
Product weight: 0.380 kg
Package weight: 1.740 kg Product size (L x W x H): 19.00 x 18.00 x 8.00 cm / 7.48 x 7.09 x 3.15 inches Package size (L x W x H): 32.00 x 32.00 x 20.00 cm / 12.6 x 12.6 x 7.87 inches |
Package Contents |
Package Contents: 1 x Drone, 1 x Transmitter, 1 x 11.1V 1500mAh 30C Battery, 4 x Spare Propeller, 1 x Charger, 1 x Antenna |
