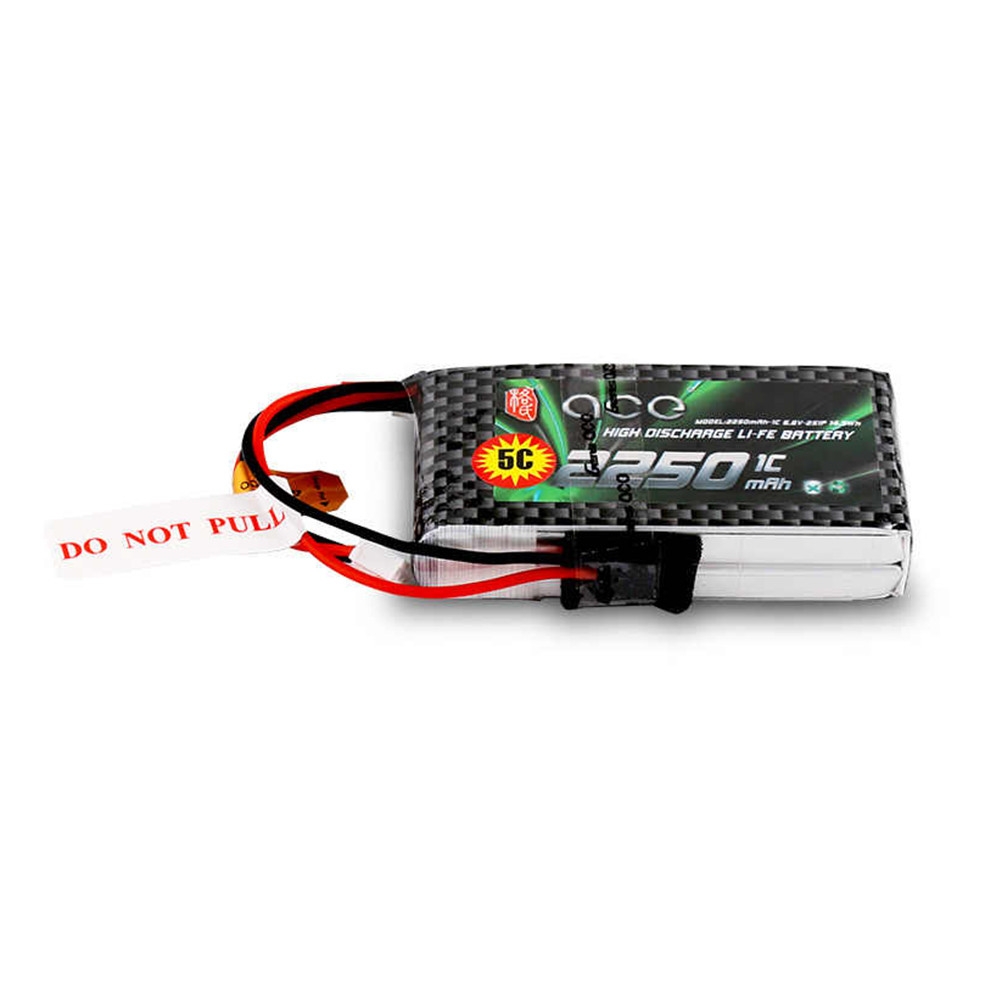

Specification:
Brand Name: ACE
Item Name: 6.6V 2250mAh 5C Li-FE Battery
Capacity: 2250mAh
Voltage: 2S1P / 2 Cell / 6.6V
Discharge: 1C Constant / 2C Burst
Weight: 94g
Dimensions: 76mm (L) x 41mm (W) x 16mm (H)
Balancer Connector Type: JST-XHR
Discharge Plug: BBL1(Futaba 3P)
Discharge Plug: BBL1(Futaba 3P)
Charging Wire: 20# 100mm
Discharge Wire: 22# 65mm
Suggest Charge rate: 2.25A
Support Max Charge rate: 2.25A
Application: compatible w/ Futaba 118SZ 14SG T10J T8J T6J 4PKS 4PL Radio Transmitter
Notice:
1. Must Take it off from Radio Transmitter and charge it via balance charger.
2. It is LI-FE Battery. CAN NOT be charged in lipo battery mode.
3. If using A6 , A9, BC168 ( or other charger like these), MUST set the Charge cut-off Voltage in Cell 3.6V
4. Discharge cut-off Voltage 2.5V
Package Included:
1x ACE 6.6V LI-FE Battery
Notice:
1. Must Take it off from Radio Transmitter and charge it via balance charger.
2. It is LI-FE Battery. CAN NOT be charged in lipo battery mode.
3. If using A6 , A9, BC168 ( or other charger like these), MUST set the Charge cut-off Voltage in Cell 3.6V
4. Discharge cut-off Voltage 2.5V
Package Included:
1x ACE 6.6V LI-FE Battery
