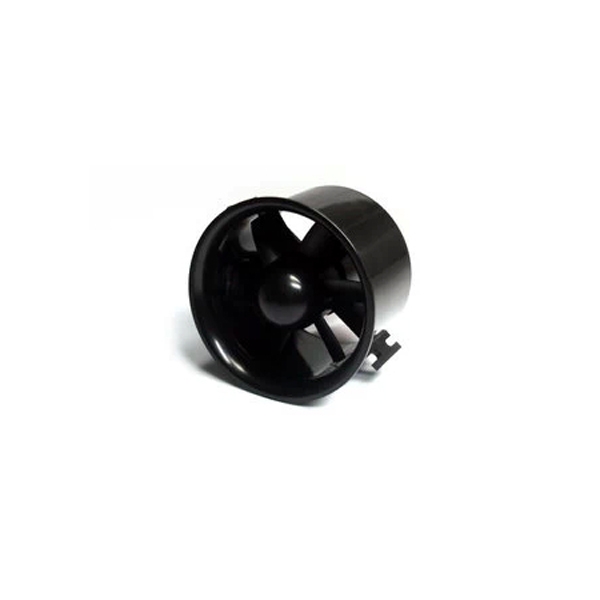

70mm Ducted Fan EDF Unit With 3000KV Brushless Outrunner Motor for RC Model
Description:
Item name: 70mm Ducted Fan EDF Unit With 3000KV Brushless Outrunner Motor
Item name: 70mm Ducted Fan EDF Unit With 3000KV Brushless Outrunner Motor
Weight: 142 gram total
Motor Dimensions (Diameter x Length):27.7mm x 41mm
Shaft Dimensions (Diameter x Length):4mm x 13.5mm
Ducted Fan Exterior Dimensions (Diameter x Length):73mm x 58mm
Ducted Fan Interior Dimensions (Diameter x Length):70mm x 41mm
6-Blade propeller
Rotational Speed : 3000 RPM/V
The Max Thrust : 1250g
Continuous Current : 22A
The Max Current: 30A
Input Voltage: 8-18 V
No Load Current: 1.8A
Internal Resistance: 128mΩ
Recommend esc: 50A
Recommend number of cells: 14.8V 4S lipo battery
Package Included:
1X 70mm Ducted Fan EDF Unit With 3000KV Brushless Outrunner Motor
Package Included:
1X 70mm Ducted Fan EDF Unit With 3000KV Brushless Outrunner Motor
