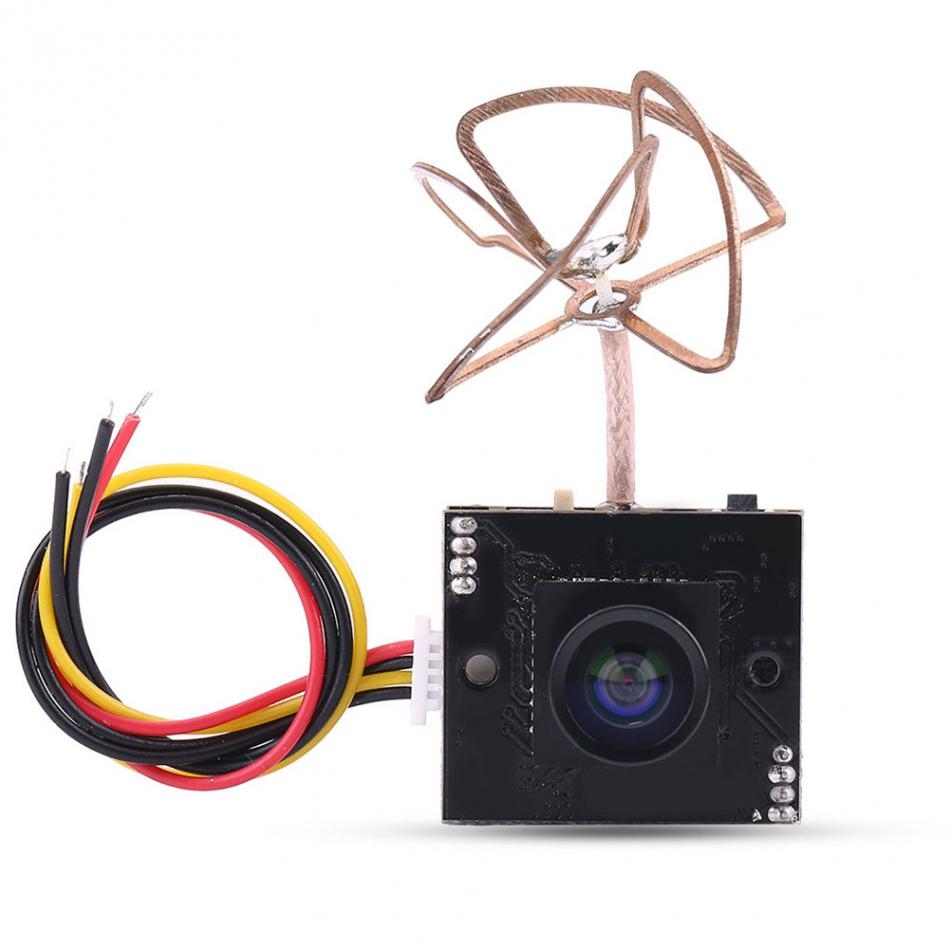

5.8G 48CH 25mw/200mw/600mw Switched 800TVL FOV 120 Degree FPV Camera Transmitter for RC Drone

Description:

This camera is extremely lightweight, only 1.8g. It supports channel, frequency group and NTSC/PAL switch. 8 LED lights display channel, 6 LED lights display frequency group information and 1 LED display PAL/NTSC and flip information. Transmitter has 3 switchable powers (25mW / 200mW / 600mW).

Features:

Transmitter is designed with 25mW, 200mW or 600mW switchable powers.

800TVL camera supports BLC and HLC.

Camera, 3DBI antenna and 5.8G transmitter are integrated into one unit.

Power-saving transmitter has wide input voltage.

Frequency is fast to be locked, which will not interfere others even with power on.

Mini size with light weight will not add extra burden to your fpv to ensure safe flying.

Specifications:

Material: Plastic + Metal

Weight: 15g

Type: RC Accessory

Transmitter

Transmitting Power: 25mW, 200mW, 600mW

Channel: 48CH

Frequency: 5.6-5.9Ghz

Input Voltage: 7.4V-20V DC

Operating Current: 100-300mA / 12V

Operating Temperature: -10-85°

Video Bandwidth: 8M

PCB Size: 20 * 23 * 7mm / 0.8 * 0.9 * 0.3inch

Camera

Resolution: 800TVL

FOV: 120°

Voltage: 3.7-5V

Signal System: NTSC / PAL

Sensor: 1/3inch CMOS

Lens Size: 11 * 11 * 10mm / 0.43 * 0.43 * 0.39inch

Net Weight: 1.8g

Package Includes:

1 x 800TVL Camera with Transmitter Module and Antenna

1 x Power and Signal Cable

1 x Manual
