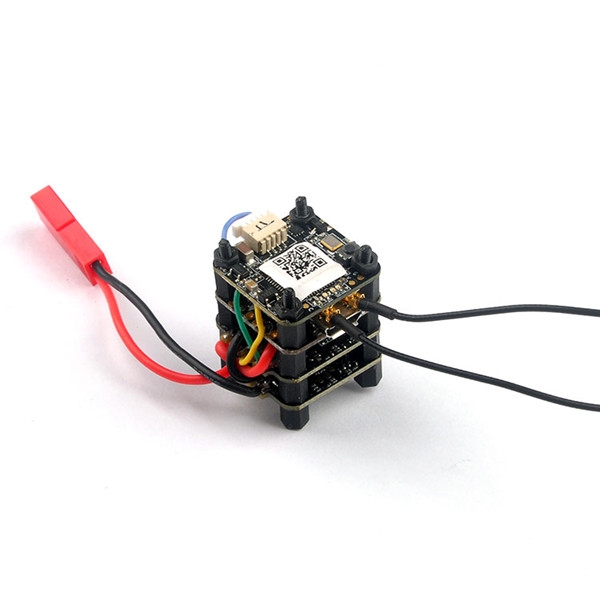

Specification:
Mount hole:15mm*15mm
Size: 20mm*20mm*23mm
Weight: 10g
Teenycube Frsky D16 Compatible 2.4G 16CH Receiver:
Model: XSR-E
Channel: XSR-16CH(1-16CH from SBUS channel,1-8ch from CPPM Channel)
Dimension: 20x20 mm
Mounting Hole: 15x15 mm
Weight: 1.8g
Operating Voltage Range: 4.0~10V
Firmware Upgradeable
Compatibility: Frsky X-series Module & Radio in D16 Mode
Smart Port enabled
has Telemetry function
SBUS/CPPM output (Blue Led stay lit indicates XSM in SBUS mode, otherwise in CPPM mode)
How to switch SBUS and CPPM signal: Long press the F/S Button on the receiver for 2 Seconds, the Green LED will flash thrice, indicating the switch is completed.
More number of channels: 1-16CH from SBUS channel,1-8ch from CPPM Channel
Teenycube F3 6DOF Flight Controller:
STM32 F303 MCU
Firmware version: Betaflight 3.1
Firmware target: Omnibus
ESC Dshot protocol compatible(Need not modify)
SBUS/PPM/DSM2/DSMX input (Pin headers)
4PWM output (Pin headers)
Super Tiny Only 20x20mm, mount holes 15x15mm M2 screw
SPI Sensor MPU6000
2-4S Lipo Direct power
5V@1A BEC
3.3V output for spectrum Satellite Receiver
Built-in PDB
LED Strip solder pad ready
Buzzer solder pad ready
Weight: only 1.6g
Best for 60mm-80mm brushless frame
Teenycube 6A BLHeli_S Dshot 2 In 1 ESC:
Model:BS06D 2in1
Con. Current: 6A
Peak Current(10s): 10A
Input Voltage: 2S Lipo
BEC: No
Programming : YES
Cleanflihg/Betaflight pass-through ready
Firmware: Blheli_S 16.5
Net Weight: only 1.7g (Not include wire)
Size: 20*20mm
Mount hole: 15mm*15mm M2
Package included:
1 x Teenycube Frsky D16 Compatible 2.4G 16CH Receiver
1 x Teenycube F3 6DOF Flight Controller
2 x Teenycube 6A BLHeli_S Dshot 2 In 1 ESC
